| Model No. | Cylinder | Power Unit | Trolley Type | Valve | Dimensions (mm) | ||||||
| A | B | C | D | E | F | G | |||||

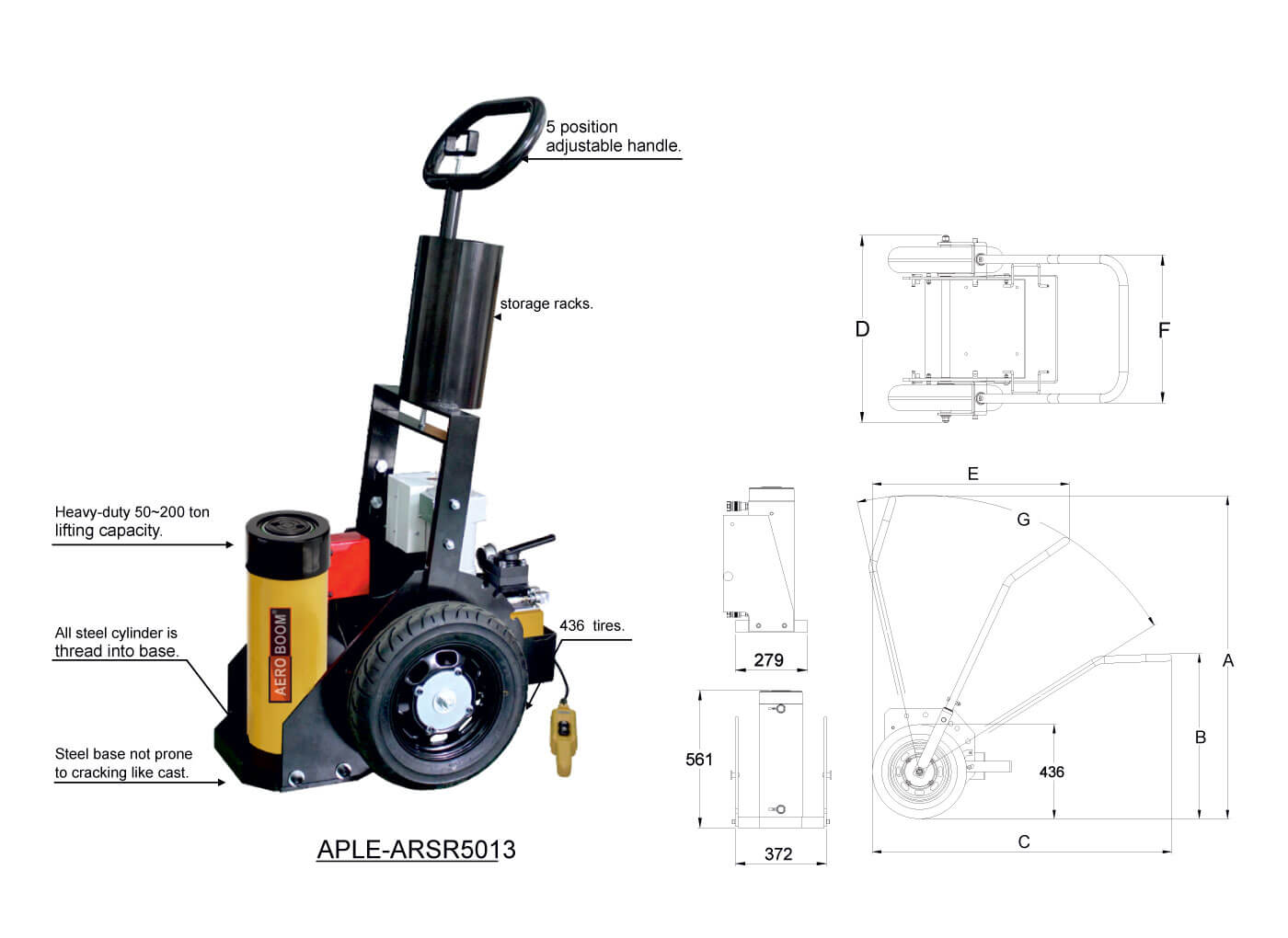

| APLE-5013 | ARSR-5013 Cap.: 498kN Stroke:334mm |
APE-554TQJ 1-1/8hp 230V 10.7A 50/60Hz Single Phase Max. Press 700 bar |
-Pail trolley | Manual 4W3P valve |
1538 | 850 | 1592 | 659 | 660 | 458 | 52 |
| APLE-5013B | B-Frame trolley | ||||||||||
| APLE-10013 | ARSR-10013 Cap.: 933kN Stroke:333mm |
-Pail trolley | |||||||||
| APLE-10013B | B-Frame trolley | ||||||||||
| APLE-15013 | RSR-15013 Cap.: 1386kN Stroke:333mm |
-Pail trolley | |||||||||
| APLE-15013B | B-Frame trolley | ||||||||||
| APLA-5013 | ARSR-5013 Cap.:498kN Stroke:334mm |
APA-554TQJ 4hp Air press 3-8 bar Max. Press 700 bar |
-Pail trolley | 1494 | 764 | 1384 | 712 | 911 | 583 | 71 | |
| APLA-5013B | B-Frame trolley | ||||||||||
| APLA-10013 | ARSR-10013 Cap.: 933kN Stroke:333mm |
-Pail trolley | |||||||||
| APLA-10013B | B-Frame trolley | ||||||||||
| APLA-15013 | ARSR-15013 Cap.: 1386kN Stroke:333mm |
-Pail trolley | |||||||||
| APLA-15013B | B-Frame trolley | ||||||||||
| Cribbing Blocks Model No. | Dimensions (mm) | Capacity tons | Jack Module Ext. | Total stack Ht. | Wt.(kg) | ||
| A | B | C | |||||
| AKAPLE5013-A01 | 38.5 | 44.5 | 139.7 | 50 | 173.0 | 515.9 | 16.3 |
| AKAPLE5013-A02 | 76.5 | 82.5 | 139.7 | ||||
| AKAPLE10013-A01 | 38.5 | 44.5 | 187.3 | 100 | 177.8 | 527.4 | 30.9 |
| AKAPLE10013-A02 | 76.5 | 82.5 | 187.3 | ||||
| AKAPLE15013-A01 | 38.5 | 44.5 | 222.2 | 150 | 168.3 | 511.2 | 38.6 |
| AKAPLE15013-A02 | 76.5 | 82.5 | 222.2 | ||||
| AKAPLE20013-A01 | 38.5 | 44.5 | 254.2 | 200 | 168.3 | 511.2 | 38.6 |
| AKAPLE20013-A02 | 76.5 | 82.5 | 254.2 | ||||
| Jack Module Ext. Model No. | Dimensions(mm) | Wt.(kg) | tons | |||||||
| A | B | C | D | E | F | G | H | |||
| AKAPLE5013-A03 | 223.8 | 173 | 127 | 72.5 | 1″-8UN | 79.5 | 66.8 | 92.2 | 9.5 | 50 |
| AKAPLE10013-A03 | 228.6 | 177.8 | 174.6 | 95.2 | 1-3/4″-12UN | 76.2 | 98.4 | 95.0 | 18.2 | 100 |
| AKAPLE15013-A03 | 219.2 | 168.4 | 203.2 | 114.3 | 3-3/8″-16UN | – | 114.3 | 88.9 | 22.7 | 150 |
