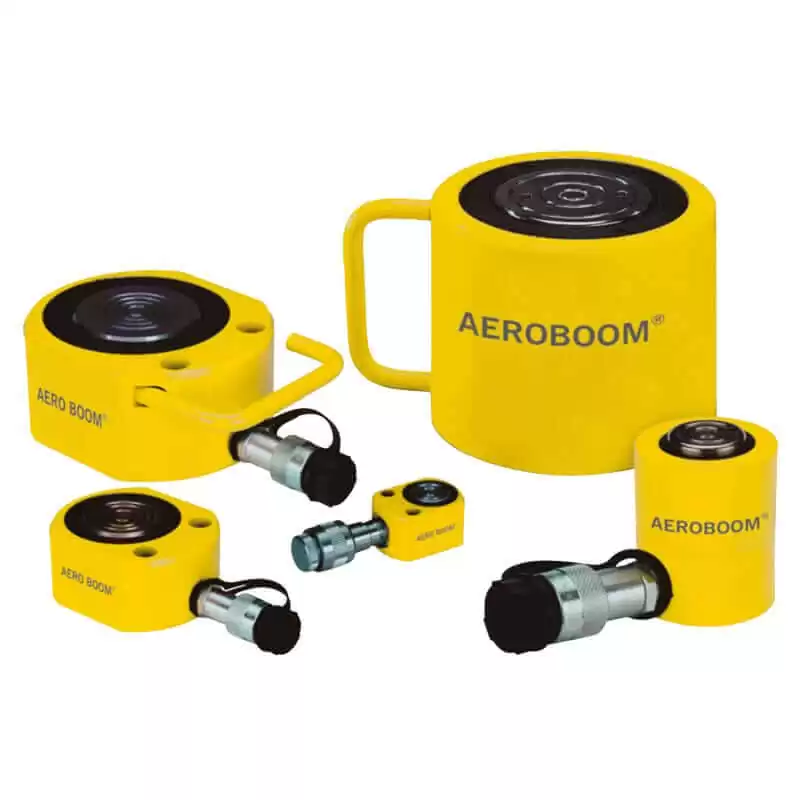

Home - Product - Hydraulic Cylinder – Low Profile – ARSM / ARCS Series

Hydraulic Cylinder

Low Profile

ARSM / ARCS Series

Capacity: 5-150 TON
Single Acting, Spring-return
700 Bar (10,000 psi)
Features
  • Low profile, flat design for use in confined spaces.
  • High strength alloy steel construction for increased durability.
  • Hardened and chromed piston reduces wear and corrosion.
  • Grooved piston end requires no saddle.
  • Heavy duty, straight pull, return spring provides quick retraction time.
  • Mounting holes permit easy fixturing.
  • Environmentally friendly coating process provides a durable anti-corrosion finish.
  • Rugged ACR-400 Female coupler with dust cover provided*.
  • Complies with ASME B30.1 standards.
Accessories Specs and Dimensions Downloads

ACCESSORIES

Hydraulic Cylinder Low Profile 2
Model Number Cyl. Capacity Stroke Cylinder Effective Area Oil Capa- city
ton (mm) (cm²) (cm³)
ARSM-50 1) 5 6 6,5 4
ARSM-100 10 11 14,5 18
ARSM-200 20 11 28,7 32
ARSM-300 30 13 42,1 55
ARSM-500 50 16 62,1 99
ARSM-750 75 16 102,6 164
ARSM-1000 100 16 126,7 203
ARSM-1500 150 16 198,1 317
ARCS-101* 10 38 14,5 55
ARCS-201* 20 45 28,7 129
ARCS-302* 30 62 42,1 261
ARCS-502* 50 60 62,1 373
ARCS-1002* 100 57 126,7 722

Optional Bolt On Tilt Saddle Dimensions(mm)

For Cylinder Model: Model Number A B C*
ARCS-101 CAT-11 35 11 21
ARCS-201, -302, -502 CAT-51 50 15 29
ARCS-1002 CAT-101 71 17 35

RSM Cylinder Mounting Hole Dimensions(mm)

Model Number Bolt Circle U1 Hole Dia. V Counter Bore Dia. Counter Bore Depth
ARSM-50 28,5 5,5 9,1 4,3
ARSM-100 36,6 7,1 10,7 7,9
ARSM-200 49,3 10,0 15,1 9,9
ARSM-300 52,3 10,0 15,9 11,2
ARSM-500 66,5 11,0 19,0 12,7
ARSM-750 76,2 13,5 20,6 14,2
ARSM-1000 76,2 13,5 20,6 14,2
ARSM-1500 117,3 13,5 20,6 14,2
Hydraulic Cylinder Low Profile 3
Collapsed Height A Extended Height B Outside Diameter D Cylinder Bore Dia. E Plunger Dia. F Base to Advance Port H Plunger Protrusion from Base K Plunger to Base L Plunger to Mtg. Hole M Thread 0 Thread Depth P Bolt Circle U Model Number
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
32 38 58 X 41 28,7 25,4 16 1 20 22 – – – 1,0 ARSM-50″
43 54 82 x 55 42,9 38,1 19 1 27 34 – – – 1,4 ARSM-100
51 62 101 X 76 60,5 50,8 19 1 39 39 – – – 3,1 ARSM-200
58 71 117 X 95 73,2 63,4 19 2 47 44 – – – 4,5 ARSM-300
66 82 140 X 114 88,9 69,8 19 2 57 53 – – – 6,8 ARSM-500
79 95 165 x 139 114,3 82,6 19 2 69 66 – – – 11,3 ARSM-750
85 101 178 X 153 127,0 92,2 19 2 76 74 – – – 14,5 ARSM-1000
100 116 215 x 190 158,8 114,3 23 2 95 82 – – – 26,3 ARSM-1500
88 126 69 42,9 38,1 17 5 – – M4 8 26 2,7 ARCS-101*
98 143 92 60,5 50,8 17 3 – – M5 8 40 5,0 ARCS-201*
117 179 101 73,2 66,5 19 3 – – M5 8 40 6,8 ARCS-302*
122 182 124 88,9 69,8 23 2 – – M5 8 40 10,0 ARCS-502*
141 198 165 127,0 92,2 31 1 – – M8 10 55 20,7 ARCS-1002*
