Pile Testing Cylinder With Safety Lock Nut

PTJS Series (Single Acting)

Capacity: 500 – 2000 TON
Stroke: 150-200 mm
700 Bar (10,000 psi)

  • Spherical saddle reduces damage to jack against off-center load.
  • Gauge port on jack to connect pressure gauge.

Description

Download

Download POST- HYDRAULIC CYLINDER THREADED RAM

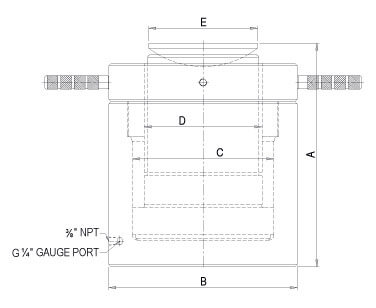

Model Rated capacity (ton) Capacity @ 700 bar (kN) Stroke (mm) Effective area (cm’) Oil cap. (cc) A Closed height (mm) B Cylinder OD (mm) C Bore dia. (mm) D Ram dia. (mm) E Saddle día. (mm) Wt. (Approx.) (kg)
PTJS 500-150 500 4948 150 706.9 10603 465 400 300 250 230 405
PTJS 500-200 500 4948 200 706.9 14137 515 400 300 250 230 446
PTJS 1000-150 1000 9930 150 1418.6 21279 570 560 425 350 330 990
PTJS 1000-200 1000 9930 200 1418.6 28373 620 560 425 350 330 1069
PTJS 1500-150 1500 15154 150 2164.8 32472 660 705 525 450 400 1835
PTJS 1500-200 1500 15154 200 2164.8 43296 710 705 525 450 400 1966
PTJS 2000-150 2000 20458 150 2922.5 43837 750 810 610 525 495 2713
PTJS 2000-200 2000 20458 200 2922.5 58450 800 810 610 525 495 2886
