Pile Testing Cylinder

PTJ Series

Capacity: 500 – 2000 TON
Stroke: 150-200 mm
700 Bar (10,000 psi)

  • Spherical saddle reduces damage to jack against off-center load.
  • Gauge port on jack to connect pressure gauge.

Description

Download

Download POST- HYDRAULIC CYLINDER THREADED RAM

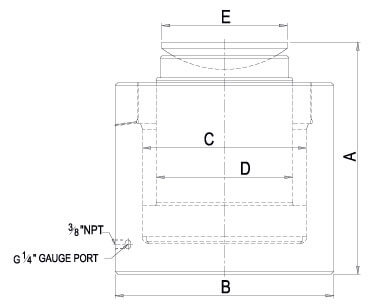

Model Rated capacity (ton) Capacity @ 700 bar (kN) Stroke (mm) Effective area (cm³) Oil cap. (cc) A Closed height (mm) B Cylinder OD (mm) C Bore dia. (mm) D Ram dia. (mm) E Saddle dia. (mm) Wt. (Approx.) (kg)
PTJ 500-150 500 4948 150 706.9 10603 415 400 300 250 230 339
PTJ 500-200 500 4948 200 706.9 14137 465 400 300 250 230 379
PTJ 1000-150 1000 9930 150 1418.6 21279 510 560 425 350 330 800
PTJ 1000-200 1000 9930 200 1418.6 28373 560 560 425 350 330 887
PTJ 1500-150 1500 15154 150 2164.8 32472 595 705 525 450 400 1488
PTJ 1500-200 1500 15154 200 2164.8 43296 645 705 525 450 400 1618
PTJ 2000-150 2000 20458 150 2922.5 43837 665 810 610 525 495 2204
PTJ 2000-200 2000 20458 200 2922.5 58450 715 810 610 525 495 2377
