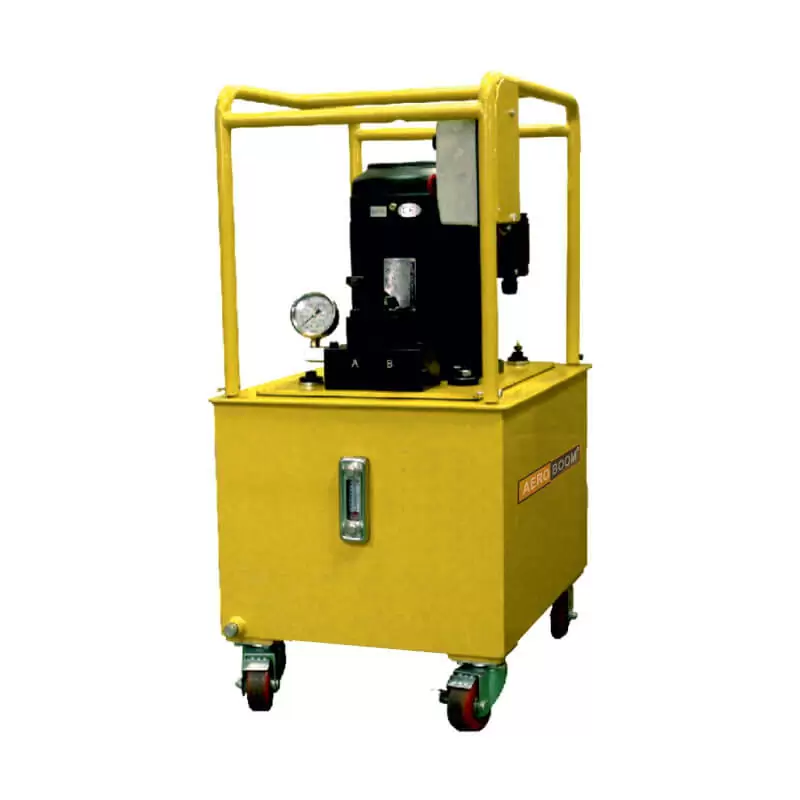

APE 5 Series 1

Hydraulic Electric Pump

APE-5 Series

Reservoir Cap: 50-60L
Flow at rated pressure: 2.6-18 L
Motor Size: 3.7 kW(5hp)
Max Operating Pressure:700 bar

  • Vary reservoirs for use with a wide range of cylinders and application.
  • All pumps feature sturdy Roll Cages for use in tough environments.
  • Two stage models for reduced cycle times and improved productivity.
  • User adjustable external relief valve with a factory set upper limit prevents system overload.
  • Easy to read integrated oil level sight glass.
  • Totally enclosed fan-cooled motors are ideal for outdoor use in many environments.



Used with cylinder Valve Function
Manual 3 way Valve
Manual 4 way Valve

Model Number Motor kW (hp) Operation Pressure Rating (bar) Flow Rate(60Hz) (L/min) Rpm dBA at Idle and 700bar Weight (50L no oil) (kg)
1″stage 2nd stage 1″stage 2nd stage
APE-5 3.7 (5) Two-stage 60 700 18 2.6 1740 70-79 190
