Aeroboom > Products > Hydraulic Cylinders > Hydraulic Cylinder – Ultra Low Height – AUL Series
terwe

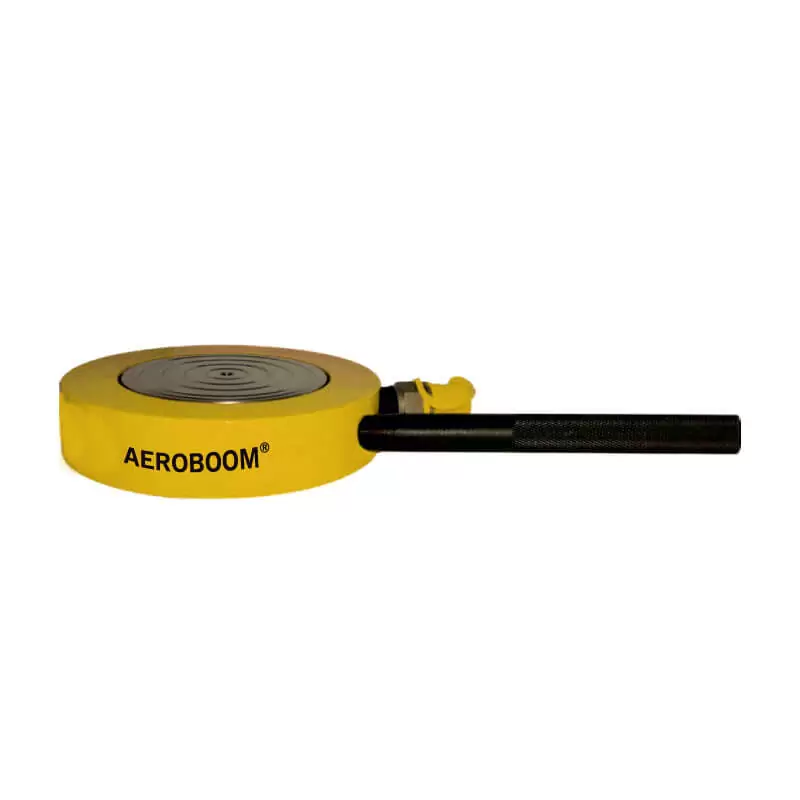

Hydraulic Cylinder

Ultra Low Height

AUL Series

(56-207 Ton)

  • Thin cylinder body, narrow space usage.
  • Cylinder, small size, light weight.
  • Cylinder are single acting, load return.
  • Cylinder surface after special treatment, suitable for harsh environments.
  • Cylinder are equipped with a G1/4” quick-change connectors, easy to use.

Description

Download

Download POST- HYDRAULIC CYLINDER THREADED RAM

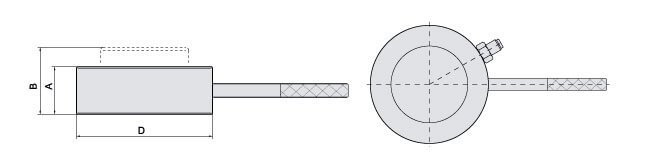

Model Number Cylinder Capacity 10,000 PSI (700 bar) Stroke Oil Capacity Collapsed Height
A		 Extended Height
B		 Outside Diameter
D		 Balance Angle
Metric Ton (mm) (cm²) (mm) (mm) (mm) kg
AUL-001 56 13 0.037 30 43 128 3 3
AUL-002 56 18 0.051 35 53 56 3 3.6
AUL-003 100 13 0.066 30 43 100 3 4
AUL-004 100 18 0.091 35 53 100 3 4.8
AUL-005 150 13 0.102 30 43 150 3 5.3
AUL-006 150 18 0.141 35 53 150 3 6.2
AUL-007 207 13 0.135 30 43 207 3 6.4
AUL-008 207 18 0.187 35 53 207 3 7.5
