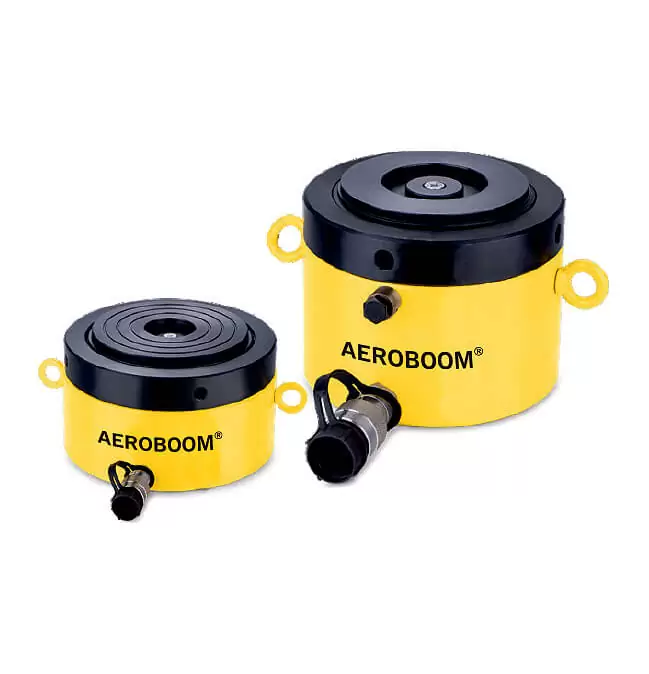

Home - Product - Hydraulic Cylinder – Pancake Locking Collar – ACLP Series

Hydraulic Cylinder

Pancake Locking Collar

ACLP Series

Capacity: 60-520 TON
Single Acting, Load-Return
700 Bar (10,000 psi)
Features
  • Low profile, flat design for use in confined spaces.
  • Alloy Steel lock nut for mechanical load holding.
  • Tilting saddle standard.
  • Overflow port functions as a stroke limiter.
  • Rugged, ACR-400 Female couplers with dust covers provided.
  • Complies with ASME B30. 1 standards.
  • Hardened, chromed and threaded piston reduces wear and corrosion.
  • High strength composite bearing provides support for off center loads without damaging the cylinder walls.
  • High strength alloy steel body is precision machined to reduce wear and features a baked enamel finish for durability and corrosion protection.
Specs and Dimensions Downloads
Pancake Locking Collar 2
Pancake Locking Collar 3
Model Number Cylinder Capacity Stroke Cylinder Effective Area Oil Capacity Collapsed Height A Extended Height B Outside Diameter D Cylinder Bore Diameter E Plunger Diameter F Base to Advance Port H Saddle Max. Tilt Angle R Lock Nut Height S
ton (mm) (cm²) (cm³ (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
ACLP-602 60 50 86,6 432 125 175 140 105,0 Tr 104 X 4 19 5° 28 15
ACLP-1002 100 50 146,8 734 137 187 175 136,7 Tr 136 X 6 21 5° 31 26
ACLP-1602 160 45 231,3 1040 148 193 220 171,6 Tr 171 x 6 27 5° 40 44
ACLP-2002 200 45 285,6 1285 155 200 245 190,7 Tr 190 x 6 30 5° 43 57
ACLP-2502 260 45 366,8 1650 159 204 275 216,1 Tr 216 X 6 32 5° 44 74
ACLP-4002 400 45 559,5 2517 178 223 350 266,9 Tr 266 x 6 39 4° 55 134
ACLP-5002 520 45 730,6 3287 192 237 400 305,0 Tr 305 x 6 48 3° 62 189
