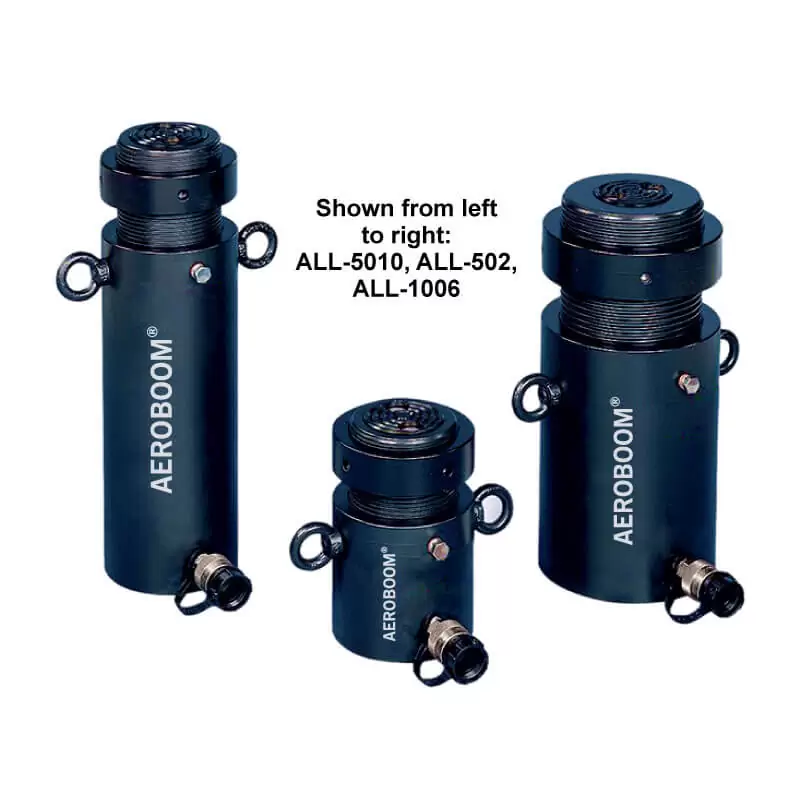

Lock Nut Cylinders 1

Hydraulic Cylinder

Lock Nut Cylinders

All Series

Capacity: 50-1000 TON
Single Acting, Load Return
700 Bar (10,000 psi)

  • Single-acting, load return.
  • Safety Lock Nut for mechanical load holding.
  • Special synthetic coating for improved corrosion resistance and lower friction for smoother operation.
  • Overflow port functions as a stroke limiter.
  • Inter changeable, hardened grooved saddles are standard.
  • ACR-400 coupler and dust cap included on all models.

Description

Download

Download POST- HYDRAULIC CYLINDER THREADED RAM

To Secure Loads Mechanically

Model Number Cylinder Capacity ton Stroke (mm) Cylinder Effective Area (cm²) Oil Capacity (cm³) Coll. Height A (mm) Ext. Height B (mm) Outs. Dia. D (mm) Cyl. Bore Dia. E (mm) Plunger Dia. (threaded) F (mm) Base to Adv. Port H (mm) Lock- nut Height S (mm) (kg) *Optional Tilt Saddle
Saddle Dia. J1 (mm) Saddle Height K1 (mm) Saddle Model Number
ALL-502 50 70,9 355 164 214 125 95,0 Tr 95 X 4 30 36 15 71 24 AT-100
ALL-504 100 70,9 709 214 314 125 95,0 Tr 95 X 4 30 36 20 71 24 AT-100
ALL-506 50 150 70,9 1064 264 414 125 95,0 Tr 95 X 4 30 36 25 71 24 AT-100
ALL-508 200 70,9 1418 314 514 125 95,0 Tr 95 X 4 30 36 30 71 24 AT-100
ALL-5010 250 70,9 1773 364 614 125 95,0 Tr 95 X 4 30 36 35 71 24 AT-100
ALL-5012 300 70,9 2127 414 714 125 95,0 Tr 95 X 4 30 36 40 71 24 AT-100
ALL-1002 50 132,7 664 187 237 165 130,0 Tr 130 X 6 30 44 30 71 24 AT-100
ALL-1004 100 132,7 1327 237 337 165 130,0 Tr 130 X 6 30 44 39 71 24 AT-100
ALL-1006 100 150 132,7 1991 287 437 165 130,0 Tr 130 X 6 30 44 48 71 24 AT-100
ALL-1008 200 132,7 2654 337 537 165 130,0 Tr 130 X 6 30 44 56 71 24 AT-100
ALL-10010 250 132,7 3318 387 637 165 130,0 Tr 130 X 6 30 44 64 71 24 AT-100
ALL-10012 300 132,7 3981 437 737 165 130,0 Tr 130 X 6 30 44 73 71 24 AT-100
ALL-1502 50 198,6 993 209 259 205 159,0 Tr 159 x 6 39 44 53 130 20 AT-200
ALL-1504 100 198,6 1986 259 359 205 159,0 Tr 159 x 6 39 44 66 130 20 AT-200
ALL-1506 150 150 198,6 2979 309 459 205 159,0 Tr 159 x 6 39 44 78 130 20 AT-200
ALL-1508 200 198,6 3972 359 559 205 159,0 Tr 159 x 6 39 44 92 130 20 AT-200
ALL-15010 250 198,6 4965 409 659 205 159,0 Tr 159 x 6 39 44 104 130 20 AT-200
ALL-15012 300 198,6 5958 459 759 205 159,0 Tr 159 x 6 39 44 117 130 20 AT-200
ALL-2002 50 265,6 1330 243 293 235 184,0 Tr 184 x 6 50 50 83 130 20 AT-200
ALL-2006 200 150 265,6 3989 343 493 235 184,0 Tr 184 x6 50 50 117 130 20 AT-200
ALL-20012 300 265,6 7995 493 793 235 184,0 Tr 184 x6 50 50 170 130 20 AT-200
ALL-2502 50 366,1 1832 249 299 275 216,0 Tr 216 x6 50 56 116 150 21 AT-250
ALL-2506 250 150 366,1 5496 349 499 275 216,0 Tr 216 x 6 50 56 162 150 21 AT-250
ALL-25012 300 366,1 10995 499 799 275 216,0 Tr 216 x 6 50 56 234 150 21 AT-250
ALL-3002 50 456,2 2281 295 345 310 241,0 Tr 241 x 6 59 60 173 195 75 AT-300
ALL-3006 300 150 456,2 6843 395 545 310 241,0 Tr 241 x 6 59 60 233 195 75 AT-300
ALL-30012 300 456,2 13740 545 845 310 241,0 Tr 241 x 6 59 60 323 195 75 AT-300
ALL-4002 50 559,9 2800 335 385 350 267,0 Tr 266 x 6 70 70 250 225 85 AT-400
ALL-4006 400 150 559,9 8399 435 585 350 267,0 Tr 266 x 6 70 70 327 225 85 AT-400
ALL-40012 300 559,9 16800 585 885 350 267,0 Tr 266 x 6 70 70 441 225 85 AT-400
ALL-5002 50 731,1 3653 375 425 400 305,0 Tr 305 x 6 80 80 367 250 91 AT-500
ALL-5006 500 150 731,1 10959 475 625 400 305,0 Tr 305 x 6 80 80 466 250 91 AT-500
ALL-50012 300 731,1 21930 625 925 400 305,0 Tr 305 X 6 80 80 617 250 91 AT-500
ALL-6002 50 854,8 4277 395 445 430 330,0 Tr 330 x 6 85 85 446 275 96 AT-600
ALL-6006 600 150 854,8 12830 495 645 430 330,0 Tr 330 x 6 85 85 562 275 96 AT-600
ALL-60012 300 854,8 25650 645 945 430 330,0 Tr 330 x 6 85 85 737 275 96 AT-600
ALL-8002 50 1176,9 5882 455 505 505 387,0 Tr 387 x 6 100 100 709 320 123 AT-800
ALL-8006 800 150 1176,9 17645 555 705 505 387,0 Tr 387 x 6 100 100 870 320 123 AT-800
ALL-80012 300 1176,9 35370 705 1005 505 387,0 Tr 387 x 6 100 100 1110 320 123 AT-800
ALL-10002 50 1466,4 7329 495 545 560 432,0 Tr 432 x 6 110 110 949 360 136 AT-1000
ALL-10006 1000 150 1466,4 21986 595 745 560 432,0 Tr 432 x 6 110 110 1141 360 136 AT-1000
ALL-100012 300 1466,4 43980 745 1045 560 432,0 Tr 432 x 6 110 110 1430 360 136 AT-1000
