Aeroboom > Products > Hydraulic Cylinders > Hydraulic Cylinder – Center Hole – ARRH Series
hydraulic cylinder arrh series

Hydraulic Cylinder

Center Hole

ARRH Series

Capacity: 30-150 TON
Double Acting
700 Bar (10,000 psi)

  • Hollow piston design allows for both pulling and pushing forces.
  • High strength alloy steel construction for increased durability.
  • Double acting operation for fast, controlled piston retraction.
  • Built-in safety valve prevents accidental over- pressurization.
  • Collar, piston threads, and base mounting holes enables easy fixturing.
  • Rugged, ACR-400 Female couplers with dust covers provided.
  • Complies with ASME B30.1 standards.

Description

Download

Download POST- HYDRAULIC CYLINDER THREADED RAM

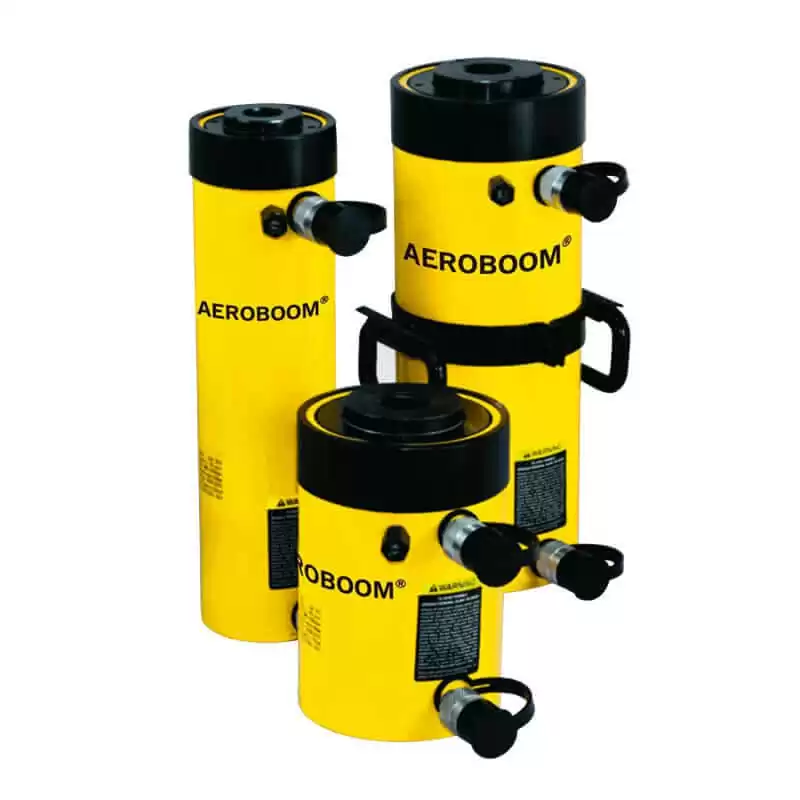

Shown from left to right : ARRH-3010, ARRH-603, ARRH-6010

Versatility in Testing, Maintenance and Tensioning Applications

Optional Heat Treated Hollow Saddles
Saddle Type Cylinder Model Number Saddle Model Nr. Saddle Dimensions (mm)
A B C
ARRH-307, 3010 HP-3015 63 11/4″ 7 9
Threaded ARRH-603, 606, 6010 HP-5016 91 15/8″. – 5¹/² 12
Hollow ARRH-1001, 1003, ARRH-1006, 10010 HP-10016 126 21/2″ 8 13
Smooth hollow saddles are standard on all ARRH-models.

Model Number Cylinder Capacity Stroke Max.Cylinder Capacity Cylinder Effective Area Oil Capacity
(kN) (cm²) (cm³)
ton (mm) Advance Retract Advance Retract Advance Retract
ARRH-307 30 178 326 213 46,6 30,4 829 541
ARRH-3010 258 326 213 46,6 30,4 1202 784
ARRH-603 60 89 576 380 82,3 54,2 733 482
ARRH-606 166 576 380 82,3 54,2 1366 900
ARRH-6010 257 576 380 82,3 54,2 2115 1393
ARRH-1001 100 38 931 612 133,0 87,4 505 333
ARRH-1003 76 931 612 133,0 87,4 1011 666
ARRH-1006 153 931 612 133,0 87,4 2035 1337
ARRH-10010 257 931 612 133,0 87,4 3420 2246
ARRH-1508 150 203 1429 718 204,1 102,6 4144 2083

Base Mounting Hole Dimensions(mm)

Model Number Coll. Height A Ext. Height B Out. Dia. D Cyl. Bore Dia. E Plgr. Dia. F Cyl. Base to Adv. Port H Cyl. Top to Return Port I Saddle Dia. J Saddle Protr. fr. Plgr. K Thread O Plunger Thread Length P Bolt Circle U Thread V Collar Thread W Collar Thread Length X Center Hole Dia. Y Thread Depth Z
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
ARRH-307 330 508 114 88,9 63,5 25 60 63 9 113/18″-16 22 92,2 3/a”-16 – 41/2 12 42 33,3 15,7 21
ARRH-3010 431 689 114 88,9 63,5 25 60 63 9 113/16 16 22 92,2 3/a” – 16 41/2″ 12 42 33,3 15,7 27
ARRH-603 247 336 159 123,9 91,9 31 66 91 12 234″-16 19 130,0 1/2″ – 13 61/4 12 48 53,8 14,0 28
ARRH-606 323 489 159 123,9 91,9 31 66 91 12 234″-16 19 130,0 1/2″ – – 13 61/4″ 12 48 53,8 14,0 35
ARRH-6010 438 695 159 123,9 91,9 31 66 91 12 234″-16 19 130,0 1/2″-13 – 61/4 12 48 53,8 14,0 45
ARRH-1001 165 203 212 165,1 127,0 38 44 126 12 4″-16 25 177,8 5/a” – 11 – – 79,2 19,0 33
ARRH-1003 254 330 212 165,1 127,0 38 85 126 12 4″-16 25 177,8 5/a”-11 8³/8″ 12 60 79,2 19,0 61
ARRH-1006 342 495 212 165,1 127,0 38 85 126 12 4″-16 25 177,8 5/8″-11 8³/8″ 12 60 79,2 19,0 79
ARRH-10010 460 717 212 165,1 127,0 38 85 126 12 4″-16 25 177,8 5/8″-11 8³/8″ 12 60 79,2 19,0 106
ARRH-1508 349 552 247 190,5 152,4 38 60 127 4 41/4″-12 25 – – – – 79,2 – 111
