Aeroboom > Products > Hydraulic Cylinders > Hydraulic Cylinder – General Purpose – Arc Series

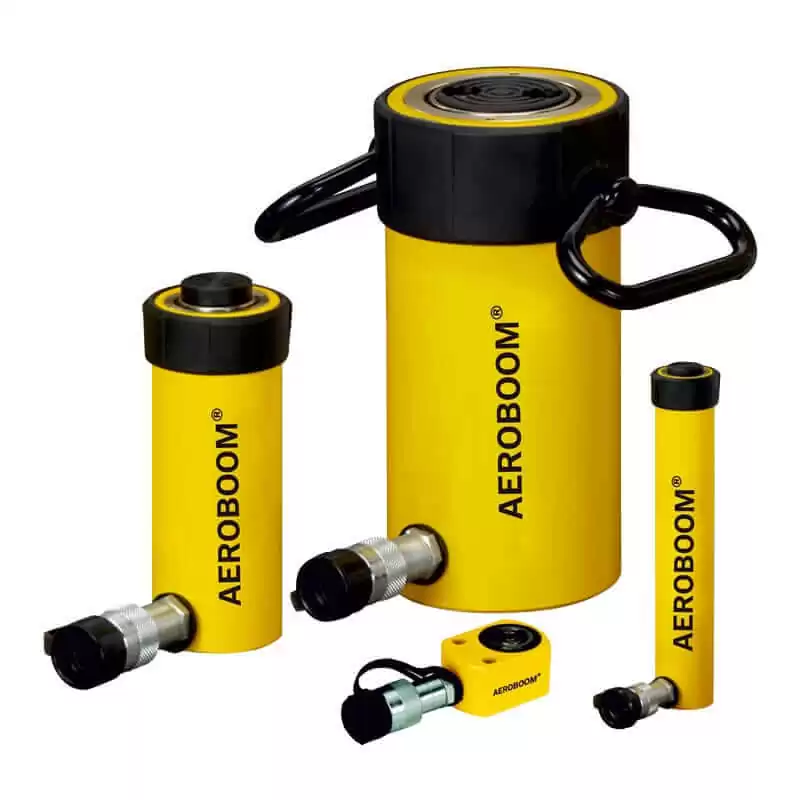

hydraulic cylinder general purpose arc series

Hydraulic Cylinder

General Purpose

ARC Series

Capacity: 5-100 TON
Single Acting, Spring-Return
700 Bar (10,000 psi)

  • High strength alloy steel construction for increased durability.
  • Hardened and chromed piston reduces wear and corrosion.
  • Heavy-duty, straight pull return springs quick retraction times.
  • Collar, piston threads, and base mounting holes enable easy fixturing.
  • Environmentally friendly coating process provides a durable anti-corrosion finish.
  • Hardened, and E-coated snap-in type saddle prevents piston jamming and mushrooming.
  • Rugged, ACR-400 Female coupler with dust cover provided.
  • Can be used in any position.
  • Complies with ASME B30.1 standards.

Description

Download


  *Excepts ARC-101

  1. Hardened alloy steel guide ring eliminates over travel an provides support to reduce wear from off center loads.
  2. Heavy-duty wiper ring keeps dust and debris out of the cylinder body improving performance and service life of the cylinder.
  3. High strength composite bearing provides support for off center loads without damaging the cylinder walls.
  4. High strength alloy steel body is precision machined to reduce wear and features a baked enamel finish for durability and corrosion protection.
  5. Hardened and chromed piston reduces wear and corrosion.
  6. Industrial U-cup style seal prevents costly leaks.
  7. Standard coupler provided with dust cover.Heavy-duty,
  8. Straight pull return springs provide quick retraction times.

OPTIONAL TILT SADDLES

Tilt Saddle Use with Cylinder capacity Metric Ton (US Ton) Tilt Saddle For use with Cylinder Capacity Metric Ton (US Ton)*
– 5 (5.5) AT-50 30 (33)
AT-10 10 (11)* AT-100 50 (55)
AT-10 15 (16.5) AT-100 75 (82.5)
AT-50 25 (27.5) AT-100 95 (102.3)


Model Number Cylinder Capacity Stroke Cylinder Effective Area Oil Capacity Collapsed Height A Extended Height B Outside Dia. D Cylinder Bore Dia. E Plunger Dia. F Base to Adv. Port H Saddle Dia. J Plunger Internal Thread 0 Plunger Thread Length P Base Mounting Holes Thread Collar Thread W Collar Thread Length X
ton (mm) (cm’) (cm³) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) V (mm) (kg)
ARC-50** 5 16 6,5 10 41 57 58*** 28,7 25,4 19 ** ** ** 5,6 mm – – 1,0
ARC-51 25 6,5 16 110 135 38 28,7 25,4 19 25 3/4 16 UN 14 1/4″ 20 UN 11/2″ 16 UN 28 1,0
ARC-53 76 6,5 50 165 241 38 28,7 25,4 19 25 14 28 1,5
ARC-55* 127 6,5 83 215 342 38 28,7 25,4 19 25 14 28 1,9
ARC-57 177 6,5 115 273 450 38 28,7 25,4 19 25 16 28 2,4
ARC-59 232 6,5 151 323 555 38 28,7 25,4 19 25 16 28 2,8
ARC-101 10 26 14,5 38 89 115 57 42,9 38,1 19 – #10 24 UN 6 5/16″- 18 UN 21/4″ 14 UN 26 1,8
ARC-102* 54 14,5 78 121 175 57 42,9 38,1 19 35 1″ 8 UN 19 26 2,3
ARC-104 105 14,5 152 171 276 57 42,9 38,1 19 35 19 26 3,3
ARC-106* 156 14,5 226 247 403 57 42,9 38,1 19 35 19 26 4,4
ARC-108 203 14,5 294 298 501 57 42,9 38,1 19 35 19 26 5,4
ARC-1010* 257 14,5 373 349 606 57 42,9 38,1 19 35 19 26 6,4
ARC-1012 304 14,5 441 400 704 57 42,9 38,1 19 35 19 26 6,8
ARC-1014 356 14,5 516 450 806 57 42,9 38,1 19 35 19 26 8,2
ARC-151 15 25 20,3 51 124 149 69 50,8 41,4 19 38 25 ³/8 16 UN 2³/4 16 UN 30 3,3
ARC-152 51 20,3 104 149 200 69 50,8 41,4 19 38 22 30 4,1
ARC-154* 101 20,3 205 200 301 69 50,8 41,4 19 38 22 30 5,0
ARC-156* 152 20,3 308 271 423 69 50,8 41,4 25 38 25 30 6,8
ARC-158 203 20,3 411 322 525 69 50,8 41,4 25 38 25 30 8,2
ARC-1510 254 20,3 516 373 627 69 50,8 41,4 25 38 25 30 9,5
ARC-1512 305 20,3 619 423 728 69 50,8 41,4 25 38 25 30 10,9
ARC-1514 356 20,3 723 474 830 69 50,8 41,4 25 38 25 30 11,8
ARC-251 25 26 33,2 86 139 165 85 65,0 57,2 25 50 1¹/²” 16 UN 25 1/2″ -13 UN 35/16 12 UN 49 5,9
ARC-252* 50 33,2 166 165 215 85 65,0 57,2 25 50 25 49 6,4
ARC-254* 102 33,2 339 215 317 85 65,0 57,2 25 50 25 49 8,2
ARC-256* 158 33,2 525 273 431 85 65,0 57,2 25 50 25 49 10,0
ARC-258 210 33,2 697 323 533 85 65,0 57,2 25 50 25 49 12,2
ARC-2510 261 33,2 867 374 635 85 65,0 57,2 25 50 25 49 14,1
ARC-2512 311 33,2 1033 425 736 85 65,0 57,2 25 50 25 49 16,3
ARC-2514* 362 33,2 1202 476 838 85 65,0 57,2 25 50 25 49 17,7
ARC-308 30 209 42,1 880 387 596 101 73,2 57,2 57 50 25 – 49 18,1
ARC-502 50 51 71,2 362 176 227 127 95,2 79,5 33 71 – – 1/2″ -13 UN 5″ 12 UN 55 15,0
ARC-504 101 71,2 719 227 328 127 95,2 79,5 33 71 – – 55 19,1
ARC-506* 159 71,2 1131 282 441 127 95,2 79,5 35 71 – – 55 23,1
ARC-5013 337 71,2 2399 460 797 127 95,2 79,5 35 71 – – 55 37,6
ARC-756 75 156 102,6 1601 285 441 146 114,3 95,2 30 71 – – – 5³/4″ 12 UN 44 29,5
ARC-7513 333 102,6 3417 492 825 146 114,3 95,2 30 71 – – – 5³/4″ 12 UN 44 59,0
ARC-1006 100 168 133,3 2239 357 525 177 130,3 104,9 41 71 – – 3/4″ 10 UN 12 UN 44 59,0
ARC-10010 260 133,3 3466 449 709 177 130,3 104,9 41 71 – – 3/4″-‘ 10 UN 67/2″ 12 UN 44 72,6
