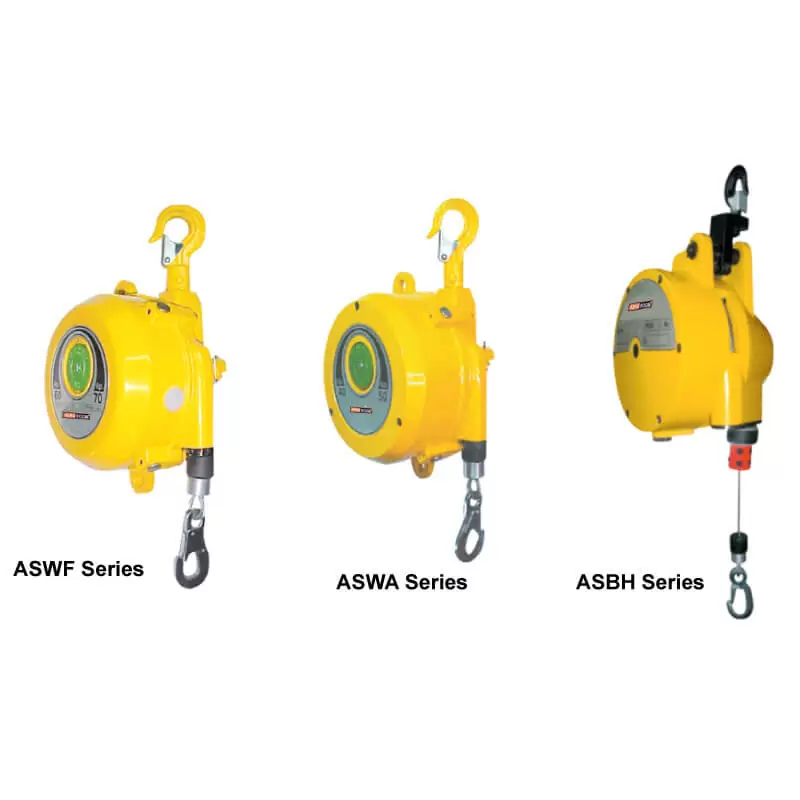

ASWF ASWA ASBH Series

Spring Balancers

ASWF, ASWA, ASBH Series

  • CLOSED BODY AND COVER: Prevents industrial accident by preventing ingress of fingers inside the assembly.
  • BODY LINER: To prevent the wear of body by wire rope. Increases life of the balancer.
  • VERTICAL AXIS SPRING ADJUSTMENT: This will facilitate adjustment of spring tension from ground level.
  • CONTAINERISED SPRING ASSEMBLY: Concealed containers are easy in handling during maintenance and replacement of springs.
  • WIRE ROPE REPLACEMENT WITHOUT DISMANTLING: A slot on balancer facilitates removal and installation of wire rope without disassembly of balancer. This facility is not available for long range balancer.
  • PRESSURE DIE CASTING: Parts are manufactured through pressure die hence there is consistency in surface finish and total interchangeability of spares. Facilitates large batch production hence reduced delivery period.
  • SAFETY LOCK PIN: Locks drum pulley in the event of spring failure and thus prevents the fall of costly equipment & injury to the operator from falling load.
  • FORGED TOP HOOK: Permits 360 degree swivel of balancer.

Description

Download

ASWA Series: These balancers are provisioned with wire arrest mechanism, which locks the drum pulley in case of bottom hook failure or accidental tool disengagement.

Model No. Capacity Travel Weight
kg meter kg
ASWF 01 0.5 – 1.5 1.0 1.1
ASWF 02 1.0-2.0 1.0 1.1
ASWF 03 1.5-3.0 1.3 1.6
ASWF 05 2.5-5.0 1.3 1.8
ASWF 09 4.5-9.0 1.3 3.9
ASWF 15 9.0-15.0 1.3 4.0
ASWF 22 15.0-22.0 1.5 7.5
ASWF 30 22.0-30.0 1.5 7.5
ASWF 40 30.0 – 40.0 1.5 10.0
ASWF 50 40.0-50.0 1.5 10.3
ASWF 60 50.0 – 60.0 1.5 10.7
ASWF 70 60.0-70.0 1.5 11.2
ASWF 85 70.0 – 85.0 1.5 11.6
ASWF 100 85.0 100.0 1.5 11.9
ASWF 90 75.0-90.0 1.5 26.2
ASWF 105 90.0 – 105.0 1.5 26.5
ASWF 120 100.0 – 120.0 1.5 26.8
ASWF 140 120.0-1 140.0 1.5 27.2
ASWF 170 140.0-170.0 1.5 33.5
ASWF 200 170.0-200.0 1.5 33.6

Model No. Capacity Travel Weight
kg meter kg
ASWF 03 L 1.5-3.0 2.5 3.3
ASWF -05L 2.5-5.0 2.5 3.7
ASWF 09 4.5-9.0 2.3 6.9
ASWF-15L 9.0-15.0 2.3 7.2
ASWF -22 L 15.0-22.0 2.3 7.7
ASWF 30L 22.0 – 30.0 2.3 7.7
ASWF 40 L 30.0-40.0 2.3 10.2
ASWF 50L 40.0-50.0 2.3 10.3
ASWF 60L 50.0 – 60.0 2.3 10.9
ASWF 70L 60.0 – 70.0 2.3 11.4
ASWF 85L 70.0 – 85.0 2.5 26.0
ASWF 100 L 85.0-100.0 2.5 26.2
ASWF 120 L 100.0 – 120.0 2.5 33.2
ASWF-130 110.0 – 130.0 2.5 33.5

Model No Capacity Travel Weight
kg meter kg
ASWA 15 9.0-15.0 1.3 5.5
ASWA- -22 15.0-22.0 1.5 8.5
ASWA- 30 22.0-30.0 1.5 8.6
ASWA -40 30.0 – 40.0 1.5 11.2
ASWA 50 40.0-50.0 1.5 11.8
ASWA-60 50.0-60.0 1.5 12.3
ASWA 70 60.0-70.0 1.5 12.8

Model No. Capacity Travel Weight
kg meter kg
ASWA- 15 L 9.0 – 15.0 2.3 8.5
ASWA 22 L 15.0-22.0 2.3 8.6
ASWA- 30 L 22.0-30.0 2.3 8.7
ASWA-40L 30.0 – 40.0 2.3 11.4
ASWA- 50 L 40.0 – 50.0 2.3 12.0
ASWA- 60 L 50.0 – 60.0 2.3 12.5
ASWA-70L 60.0-70.0 2.3 13.0

Model No. Capacity Travel Weight
kg meter kg
ASBH 225 200-225 1.5 48.5
ASBH 250 225-250 1.5 49.0
ASBH 275 250-275 1.5 49.6
ASBH 300 275-300 1.5 53.0

Model No Capacity Travel Weight
kg meter kg
ASBH-100 85 – 100 3.0 46.5
ASBH-120 100 120 3.0 47.0
ASBH 140 120 140 3.0 48.5
ASBH-160 140-160 3.0 49.5
