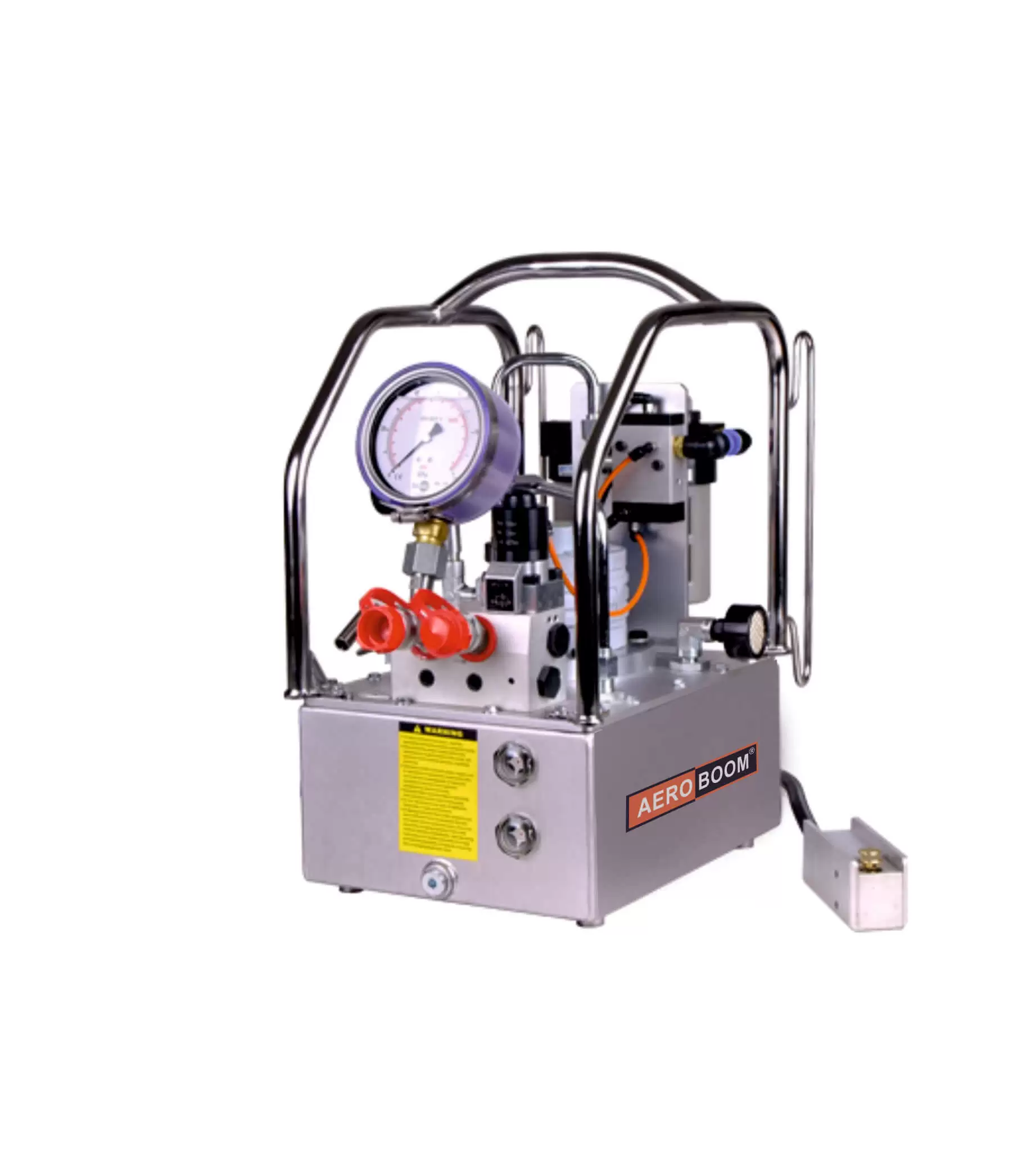

Pneumatic Pump - TWP

4P Series (700 Bar)

Features
  • Use where air(4～8 bar) is the preferred source of energy
  • Compact automatic three stage flow, can start in high pressure.
  • Applicable on both one or two wrenches simultaneously.
  • Aluminum oil tank with oil gauge and motor.
  • Total weight only 20.5 kg.
  • Have Φ100 high pressure gauge.
  • Working pressure: 40~700 bar.
  • With efficient radiator, the pump can work 24 hours continuously.
  • You can use manifold to operate 4 wrenches simultaneously.
Description Specs and Dimensions Downloads
Model Drive Tank Capacity Flow Output Pressure AIR in Power Volume
Low Min High (kg)
TWP-4P Air 8L 7-1 6-0 8 70-700 bar 4-8 bar 1.1KW 281x428x448 20.5Kg
