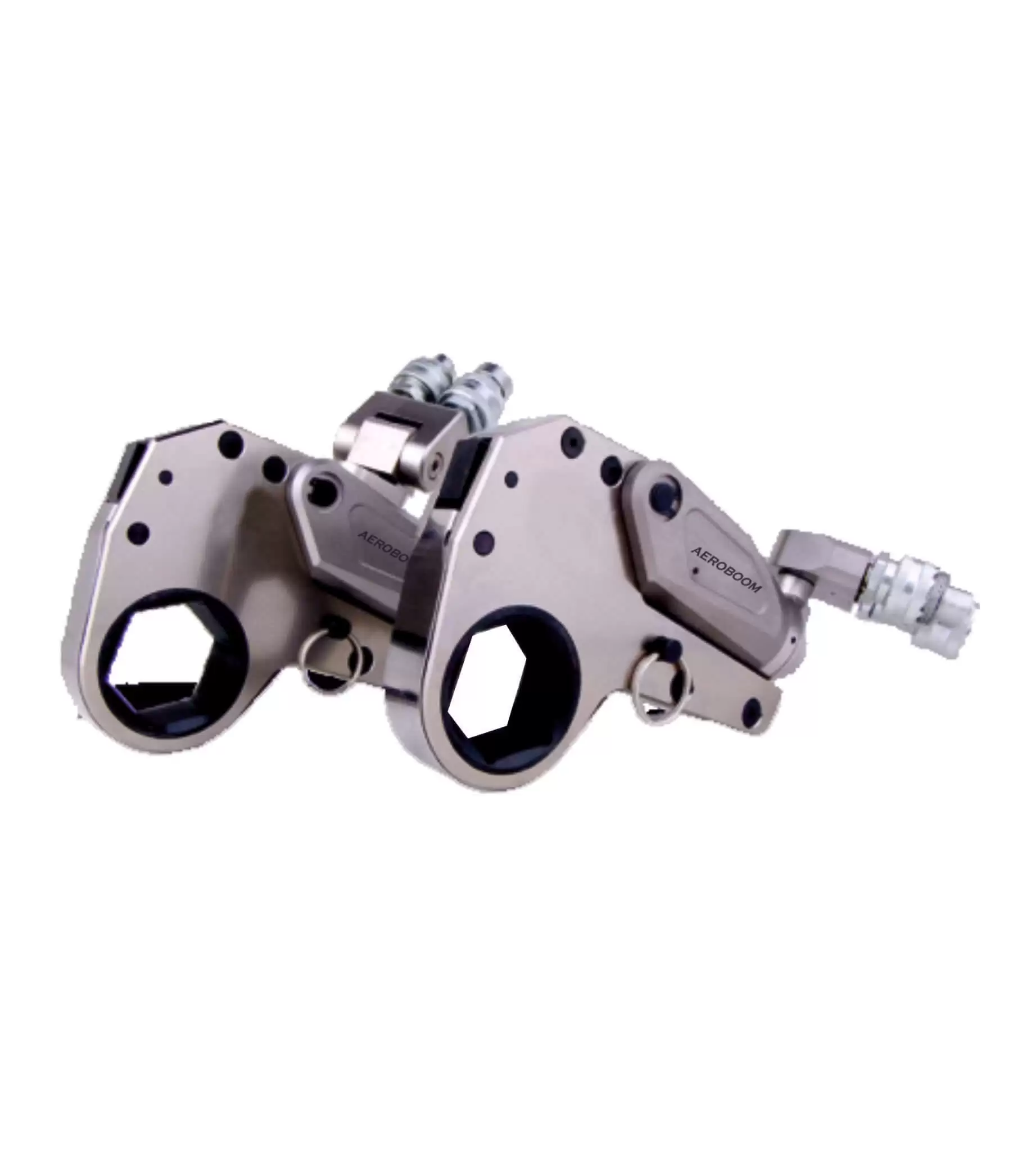

AHW Series

Low Profile Torque Wrench

AHW-series

  • 700 Bar max working pressure; keep the accuracy +3%
  • 5 models with the range from 232-44593N.m
  • 360*180 degree swivel & 360*360 degree swivel allow the wrench free to operation with no space limitation.
  • More accuracy and easier when the wrench direct operate on the nuts.
  • Compact design with longer arm fully advances the reliability reliability.
  • Compact design with the raw material of advanced aluminum-titanium alloy, high intense.
  • The new locking coupler ensures the oil keep free access.
AHW series is the professional Low profile hydraulic torque wrench which Aeroboom vigorously extends in international market. Compare with the square drive hydraulic torque wrench, this series no work directly on the nuts, its body suits well in the narrow space. AHW covers the nuts from S19 to S175. To fulfill all different working situations, the user can just replace the hexagon cassette because the hexagon cassette is changeable, or add the reducer. Aeroboom provide after-sales service all over the world, and already got the approved by TUV certificate.

Description

Download

Model Torque (Nm) Nut Sizes (Nm) Power Head Weight (Kg) Cassette Weight (Kg) Sizes (mm)
L1 L2 H1 H2 W1 W2
AHW-2 232 -2328241-2414 19-5560 11 1.61.7 195.4195.4 186186 125.9128.5 102.: 3105 3232 5151
585-2510 34~36
585-5021 41 2 4. 4 261.6 245 177 135. 7 42 66
AHW-4 585-5858 46-65 2 4. 6 261.6 245 187 145. 7 42 66
647-6474 70-80
1094~10941 41-95 3. 3 8 304 300 207 169 53 83
AHW-8 1177~11774 100-105 3. 3 8. 4 304 300 216 178 53 83
AHW-14 1852~18521 50-117 5. 5 11. 6 361 361 239 204 64 99
4188~41882 110-155 11. 4 29 441 430 303 272 85 131
AHW-30 4459~44593 160~175 11. 4 30 441 430 315 285 85 131

AHW-2 AHW-4 AHW-8< AHW-14 AHW-30
Model R (mm) A (mm) Max Torque (Nm) Type R (mm) A (mm) Max Torque (Nm) Type R (mm) A (mm) Max Torque (Nm) Type R (mm) A (mm) Max Torque (Nm) Type R (mm) A (mm) Max Torque (Nm)
AHW-2-19 27 16 2328 AHW-4-34 36 16 2510 AHW-8-41 46 22 10941 AHW-14-50 60 31 18521 AHW-30-85 78 28 41882
AHW-2-22 27 14 2328 AHW-4-36 36 15 2510 AHW-8-46 46 19 10941 AHW-14-55 60 28 18521 AHW-30-90 78 27 41882
AHW-2-27 27 11 2328 AHW-4-41 39 15 5021 AHW-8-50 46 17 10941 AHW-14-60 60 25 18521 AHW-30-95 83 28 41882
AHW-2-30 29 12 2328 AHW-4-46 42 15 5858 AHW-8-55 50 18 10941 AHW-14-65 60 22 18521 AHW-30-100 83 25 41882
AHW-2-32 29 11 2328 AHW-4-50 44 15 5858 AHW-8-60 52 17 10941 AHW-14-70 60 19 18521 AHW-30-105 89 28 41882
AHW-2-34 31 11 2328 AHW-4-55 46 14 5858 AHW-8-65 55 17 10941 AHW-14-75 63 19 18521 AHW-30-110 89 25 41882
AHW-2-36 31 10 2328 AHW-4-60 50 15 5858 AHW-8-70 58 17 10941 AHW-14-80 66 19 18521 AHW-30-115 95 28 41882
AHW-2-41 34 10 2328 AHW-4-65 53 15 5858 AHW-8-75 60 17 10941 AHW-14-85 69 19 18521 AHW-30-117 95 27 41882
AHW-2-46 37 10 2328 AHW-4-70 56 15 6474 AHW-8-80 63 16 10941 AHW-14-90 72 20 18521 AHW-30-120 95 25 41882
AHW-2-50 40 11 2328 AHW-4-75 59 15 6474 AHW-8-85 66 16 10941 AHW-14-95 74 19 18521 AHW-30-125 101 29 41882
AHW-2-55 43 11 2328 AHW-4-80 61 15 6474 AHW-8-90 69 17 10941 AHW-14-100 77 19 18521 AHW-30-30 101 26 41882
AHW-2-60 46 11 2414 AHW-8-95 71 16 10941 AHW-14-105 80 19 18521 AHW-30-135 104 26 41882
AHW-8-100 75 17 11774 AHW-14-110 83 19 18521 AHW-30-140 110 29 41882
AHW-8-105 78 17 11774 AHW-14-115 87 20 18521 AHW-30-145 110 26 41882
AHW-14-117 87 19 18521 AHW-30-150 116 29 41882
AHW-30-155 116 26 41882
AHW-30-160 128 36 44593
AHW-30-165 128 33 44593
AHW-30-170 128 30 44593
AHW-30-175 128 27 44593
