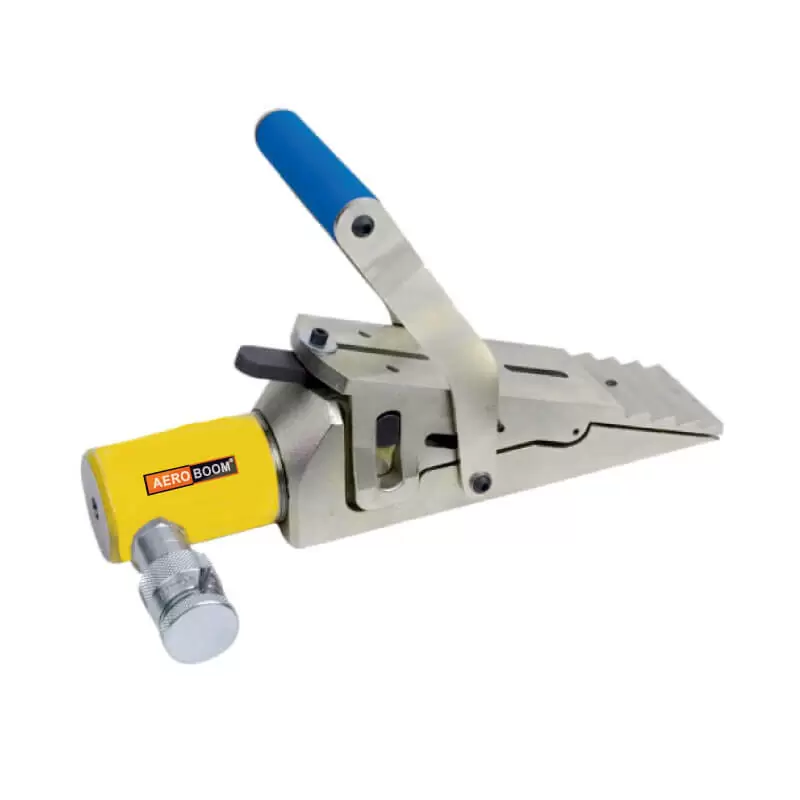

Hydraulic Lifting Wedge

ALW Series

  • Hydraulic vertical lifting wedge has lifting force of 16 tons at 700 bar hydraulic pressure.
  • Requires very small access gap of only 10 mm.
  • Each step can spread under full load.
  • Straight vertical lifting.
  • Unique interlocking wedge design: no first step bending and risk of slipping out.
  • Single-acting, spring return cylinder.
  • Lifting wedge AB-16FS includes safety block SB-2
  • Includes Cylinder with coupler.
  • Also available in 5 ton and 10 ton



Model Max Spreading Force Max Spread Tip Clearance Lifting Stroke Spreader Type Oil Capacity Weight Max Operating Pressure
ALW 16 16 Ton 81. 5mm 10 mm 21mm Hydraulics 78 cm³ 9 Kg 700 bar
