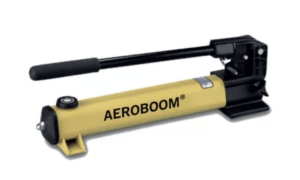

Hydraulic Hand Pump

P Series

  • Internal pressure relief valve for overload protection.
  • Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump baser for maximum corrosion resistance.
  • Two speed operation reduces handle strokes by as much as 78% over single speed pumps. Lower handle effort to minimize operator fatigue.
  • Handle lock and lightweight construction for easy carrying. Non-conductive fibre glass handle for operator safety.

Description

Download

P SERIES HAND PUMP MANUAL

Model Number Pump Type Usable Oil Capacity Pressure Rating Oil per Displacement Stroke Max. Handle Effort Piston Stroke Dimensions(mm)
1st stage 2nd stage 1st stage 2nd stage A B C
(cm³) (bar) (cm³) (kg) (mm)

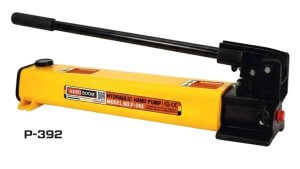

P-392 901 13 700 11.26 2.47 42.2 25.4 344 533 36

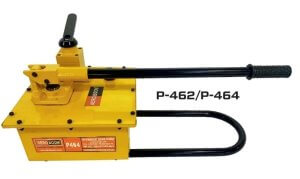

P-462 Two- 7423 14 700 126.20 4.75 50.0 38.1 210 308 163
P-464 Speed 7423 14 700 126.20 4.75 50.0 38.1 210 308 163

Model Number Dimensions(mm) Weight(kg)
D E H J L M N P Q R S
P-392 99 33 522 30 177 16 120 4.1
P-462 320 195 671 25 270 175 650 92 80 27.7
P-464 320 195 671 25 270 175 650 92 89 68 80 27.7
