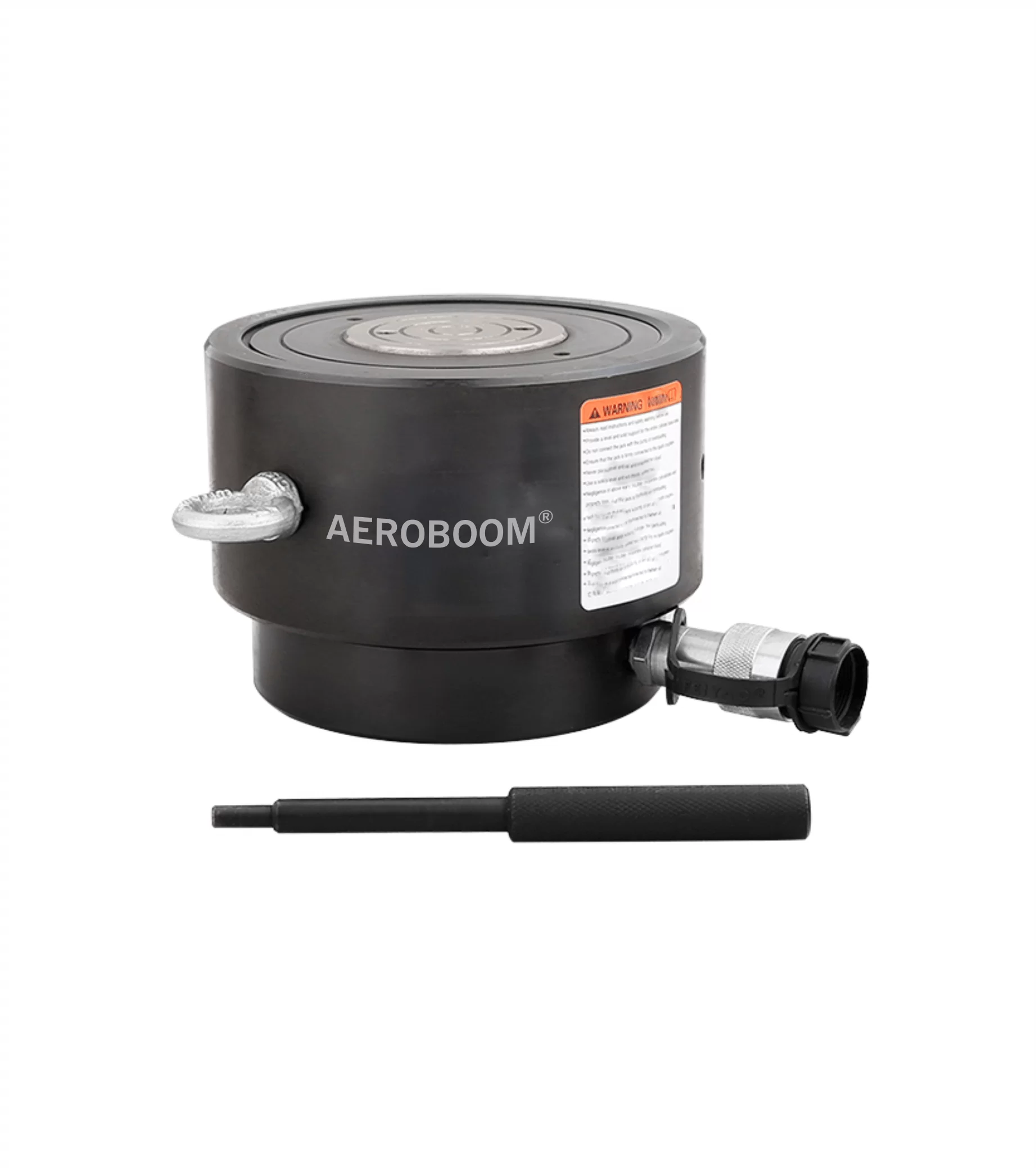

Home - Product - Hydraulic Cylinder – Single Acting Pancake Lock Nut – ARCL, AHRCL & ARDL Series

Hydraulic Cylinder

Single Acting Pancake Lock Nut

ARCL, AHRCL & ARDL Series

Features
  • Single acting, load return, mechanical lock nut for safe mechanical load holding-over a long period of time.
  • Bearing load for a long time after pressure relief.
  • Visible remarks to warn operator when stroke reaches the limit.
  • Stroke equipped with overflow port prevents piston over extended.
  • Optional special synthetic coating for improved corrosion resistance and lower friction for smoother operation.
  • Allowable partial load reaches 5% capacity of hydraulic cylinder.
  • NPT3/8 quick couplers and three protector included.
Single Acting Pancake Lock Nut 2
Specs & Dims Downloads

Single Acting Hydraulic Cylinder(spring return)

Model Number Capacity Working Pressure Collapsed Height Working Stroke Outside Diameter Effective Area Oil Capacity Plunger Diameter Nut O.D Weight
(T) (bar) (mm) (mm) D (mm) (cm²) (cm³) (mm) (mm) (kg)
ARCL 50-20 50 700 75 20 130 63.58 127.2 70 160 9
ARCL 50-60 50 700 122 60 130 63.58 381.5 70 160 14.5
ARCL 100-20 100 700 86 20 170 132.66 265.4 90 200 17
ARCL 100-60 100 700 145 60 170 132.66 796 90 200 28

Single Acting Hydraulic Cylinder(load return)

Model Number Capacity Working Pressure Collapsed Height Working Stroke Outside Diameter Effective Area Oil Capacity Plunger Diameter Nut O.D Weight
(T) (bar) (mm) (mm) D (mm) (cm²) (cm³) (mm) (mm) (kg)
AHRCL 100-10 50 700 45 10 170 143.06 143 135 198 9.5
AHRCL 150-24 150 700 54 24 215 213.72 513 165 245 18.2

Single Acting Two-stage Hydraulic Cylinder

Model Number Capacity Working Pressure Collapsed Height Working Stroke Outside Diameter Effective Area Oil Capacity Weight
(T) (bar) (mm) (mm) D (mm) (cm²) (cm³) (kg)
ARDL 80-25 1st stage 80T 2nd stage 50T 700 38 1st stage 113.04 2nd stage 70.84 175×203 1st stage 11 2nd stage 14 1st stage 124.3 2nd stage 99.2 7
