Aeroboom > Products > Hydraulic Cylinders > Hydraulic Cylinder – Aluminum – ARACL Series

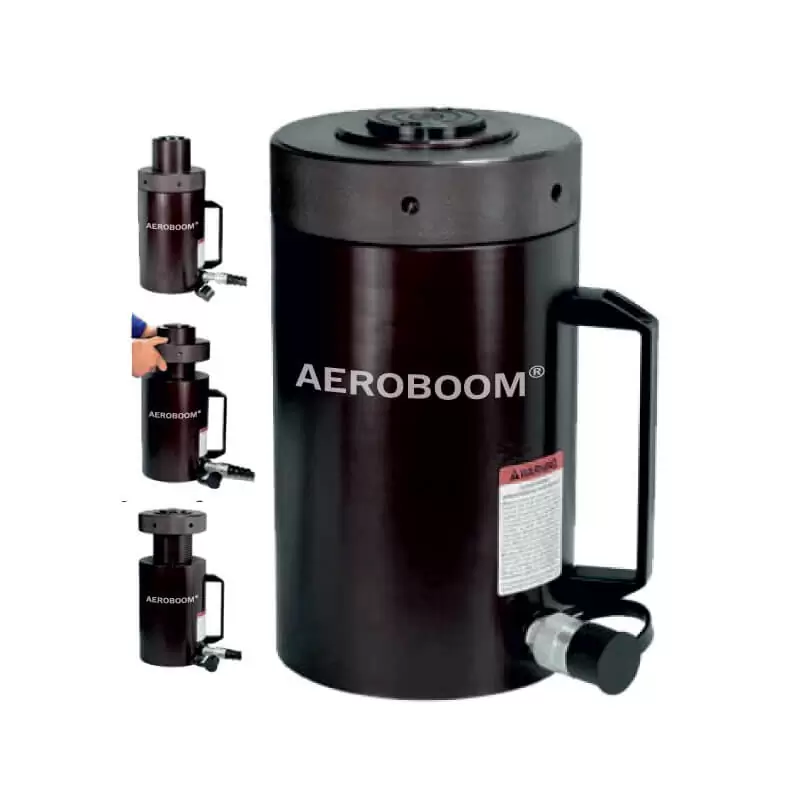

Aluminum ARACL Series 1

Hydraulic Cylinder

Aluminum

ARACL Series

Capacity: 20-150 TON
Single Acting, Spring-Return
700 Bar (10,000 psi)

  • Light weight, easy to carry.
  • High strength aluminum alloy treated to resist wear and corrosion.
  • Heavy-duty, straight pull return springs provide quick retraction times.
  • Composite bearing prevents metal to metal contact.
  • Overflow port functions as a stroke limiter.
  • Aluminum alloy lock nut for mechanical load holding.
  • Handles included on all models.
  • Rugged, ACR-400 Female couplers with dust covers provided.
  • Complies with ASME B30.1 standards.

Description

Download

Download POST- HYDRAULIC CYLINDER THREADED RAM

Steel Base Plate Mounting Holes Available on Request.Optional Bolt-on Tilt Saddle Dimension Available on Request.

Model Number Cylinder Capacity @ 700 bar Stroke Cylinder Effective Area oil Capacity Col lapsed Height A Extended Height B Outside Diameter 0 Cy Minder Bore Diameter E Bottom to Advance Port H Saddle Diameter J Lock Nut Height S
ton (mm) (cm²) (cm³) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
ARACL-202 20 50 31, 156 224 274 85 63 27 40 50 4,0
ARACL-204 100 31,2 312 274 374 85 63 27 40 50 4,6
ARACL-206 150 31,2 468 324 474 85 63 27 40 50 5,2
ARACL-208 200 31,2 624 374 574 85 63 27 40 50 5,8
ARACL-2010 250 31,2 780 424 674 85 63 27 40 50 6,4
ARACL-302 30 50 44,2 221 231 281 100 75 33 40 50 5,4
ARACL-304 100 44,2 442 281 381 100 75 33 40 50 6,1
ARACL-306 150 44,2 663 331 481 100 75 33 40 50 6,8
ARACL-308 200 44,2 883 381 581 100 75 33 40 50 7,5
ARACL-3010 250 44,2 1105 431 681 100 75 33 40 50 8,2
ARACL-502 50 50 70,9 354 236 286 130 95 30 50 50 9,3
ARACL-504 100 70,9 709 286 386 130 95 30 50 50 10,6
ARACL-506 150 70,9 1063 336 486 130 95 30 50 50 11,9
ARACL-508 200 70,9 1417 386 586 130 95 30 50 50 13,2
ARACL-5010 250 70,9 1771 436 686 130 95 30 50 50 14,5
ARACL-1002 100 50 143,1 716 296 346 180 135 46 94 75 21,9
ARACL-1004 100 143,1 1431 346 446 180 135 46 94 75 24,2
ARACL-1006 150 143,1 2147 396 546 180 135 46 94 75 26,5
ARACL-1008 200 143,1 2863 446 646 180 135 46 94 75 28,8
ARACL-10010 250 143,1 3578 496 746 180 135 46 94 75 31,1
ARACL-1502 150 50 227,0 1135 323 373 230 170 51 113 80 32,2
ARACL-1504 100 227,0 2270 373 473 230 170 51 113 80 36,2
ARACL-1506 150 227,0 3405 423 573 230 170 51 113 80 40,2
ARACL-1508 200 227,0 4540 473 673 230 170 51 113 80 44,2
ARACL-15010 250 227,0 5675 523 773 230 170 51 113 80 48,2
