AETW Series

Electric Torque Wrench With Lcd

AETW Series

Straight & Angled (Two Speed)

  • Input: 220-240V AC,50/60Hz.
  • Preset torque and automatic shutoff when reaching the set torque.
  • High output and repeat accuracy: ± 5% and ± 3%.
  • Single-chip intelligent torque control system with LCD display.
  • With manual 2-speed gearbox, high/low speed can be shifted freely.
  • Free connection of power handle and drive unit.

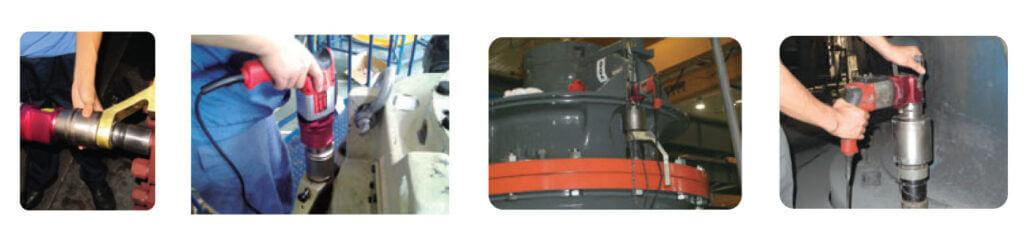

  • Good continuous working ability, suitable for assembly line & installation & maintenance job.
  • Double insulation design, much safer.

Description

Download

Model Torque (Nm) Square C Diameter D (mm) Lengh L (mm) Free Speed (rpm) Welght* (kg)
AETW-O8S 100-800 3/4″ 88 429 20.0 7.5
AETW-12S 200-1200 88 434 18.0 7.6
AETW-26S 400-2600 1′ 88 455 7.0 8.2
AETW-B8S 500-3800 1-1/2″ 96 475 5.0 9.8
AETW-60S 1000-6000 1-1/2″ 114 510 3.5 12.3
AETW-80S 1200-8000 1-1/2″ 143 570 1.9 19.2
AETW-100S 1800-10000 1-1/2″ 143 570 1.6 19.2
AETW-120S 2000 12000 1 1/2″ 143 570 13 19 2

Model Torque (Nm) Square C Diameter D (mm) High H (mm) Free Speed (rmm) Waight ( kg)
AETW-08A 100-800 3/4″ 88 248 20.0 8.7
AETW-L2A 200-1200 88 253 18.0 8.8
AETW-26A 400-2600 88 274 7.0 9.4
AETW-38A 500-3800 1-1/2″ 96 294 5.0 11.0
AETW-60A 1000-6000 1-1/2″ 114 329 3.5 13.5
AETW-BOA 1200-8000 1-1/2* 143 390 1.9 20.4
AETW-100A 1800-10000 1-1/2″ 143 390 1.6 20.4
AETW-120A 2000-12000 1-1/2″ 143 390 1.3 20.4
