Conventional Bolt Tensioner

ABT Series

ABT Series Bolt Tensioners are designed for operation in a wide variety of applications including pipeline flanges, heat exchangers, pressure vessels, compressor covers, boilers feed pumps, anchors bolts and many others. The Bolt Tensioner is very simple to use and consists of four parts -Threaded Puller, Load Cell, Bridge and Nut Driver (Nut Rotating Socket).

Description

Download

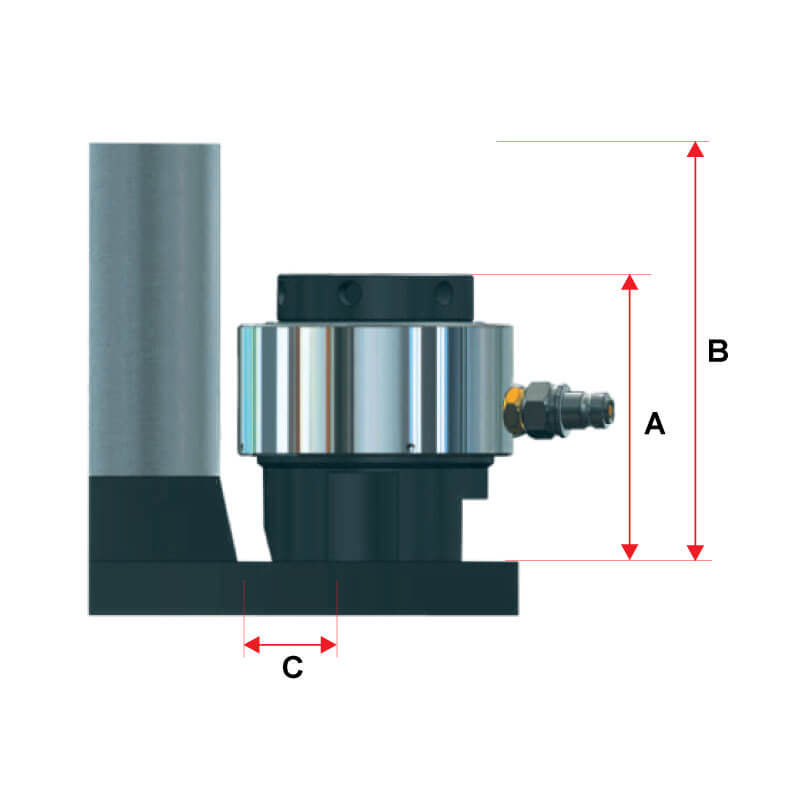

Model No.		Bolt Size		Max Load		Hyd Area		O.D.	Min Pitch	Relief C	Height A	Clearance B	Weight
Load Cell	Adaptor Kit	inch	mm	M Ton	kN	in’	mm	mm	mm	mm	mm	mm	kg.
ABT-01	A1-0.12	3/4		34.5	339	3.50	2257	84	46	30	86	160	3.5″
	A1-M20		20						47	30	86	160	1.3
	A1-0.14	7/8							53	32	94	168	1.4
	A1-M24		24						54	32	94	168	1.4
	A1-1.00	1							55	32	94	168	1.4
ABT-02	A2-M27		27	40.6	397	4.11	2649	98	56	34	96	170	4.5*
	A2-1.02	1.1/8							59	37	98	172	1.8
	A2-M30		30						62	37	97	173	1.9
	A2-1.04	1.1/4							67	40	99	180	2.0
	A2-M33		33						68	40	99	181	2.1
	A2-1.06	1.3/8							72	43	101	186	2.3
	A2-M36		36						73	43	101	187	2.3
ABT-03	A3-1.04	1.1/4		65.2	639	6.60	4259	115	69	40	99	185	5.9*
	A3-M33		33						70	40	99	174	2.4
	A3-1.06	1.3/8							74	43	101	177	2.9
	A3-M36								75	43	101	178	2.9
	A3-1.08	1.1/2							80	45	105	187	3.0
	A3-M39		39						80	43	105	186	3.0
ABT-04	A4-1.06	1.3/8		73.6	721	7.45	4808	128	75	43	101	183	7.7*
	A4-M36		36						76	43	101	183	3.4
	A4-1.08	1.1/2							81	45	105	183	3.6
	A4-M39		39						81	45	105	183	3.6
	A4-1.10	1.5/8							86	48	107	187	3.9
	A4-M42		42						86	48	107	188	3.9
	A4-1.12	1.3/4							91	51	108	192	4.0
ABT-05	A5-1.10	1.5/8		96.1	942	9.73	6280	145	87	48	113	198	11.4*
	A5-M42		42						87	48	113	200	5.2
	A5-1.12	1.3/4							92	51	117	205	5.4
	A5-M45		45						93	51	117	206	5.4
	A5-1.14	1.7/8							98	54	120	212	5.6
	A5-M48		48						98	54	120	212	5.6
	A5-2.00	2							104	57	120	217	6.3
	A5-M52		52						105	57	120	217	5.9
ABT-06	A6-1.14	1.7/8		138.2	1354	13.99	9028	165	99	54	120	209	14.8
	A6-M48		48						99	54	120	210	7.1
	A6-2.00	2							105	57	123	215	7.6
	A6-M52		52						106	57	123	215	7.6
	A6-M56		56						113	62	126	223	7.8
	A6-2.04	2.1/4							114	62	126	224	7.8
ABT-07	A7-M56		56	168.5	1651	17.06	11006	180	112	62	129	222	18.1*
	A7-2.04	2.1/4							112	62	129	224	9.3
	A7-M60		60						117	62	132	229	9.4
	A7-2.08	2.1/2							125	68	135	236	9.7
	A7-M64		64						125	68	135	236	9.7
	A7-M68		68						129	68	140	238	10.0
ABT-08	A8-2.08	2.1/2		201.8	1978	20.44	13188	198	129	70	137	242	23.4*
	A8-M64		64						129	70	138	242	12.1
	A8-M68		68						132	69	143	249	12.3
	AB-2.12	2.3/4							139	75	146	254	12.5
	A8-M72		72						141	75	146	256	12.5
ABT-09	A9-2.12	2.3/4		230.3	2257	23.30	15045	215	139	75	146	261	29.3*
	A9-M72		72						141	75	146	261	15.6
	A9-M76		76						150	80	150	263	17.2
	A9-3.00	3							150	80	151	264	17.2
ABT-10	A10-M80		80	310.9	3047	31.48	23312	244	160	87	158	275	40.3*
	A10-3.04	3.1/4							162	87	158	278	24.0
	A10-M85		85						164	87	160	275	24.5
	A10-3.08	3.1/2							174	93	164	280	22.6
	A10-M90		90						175	93	164	279	22.6
	A10-M95		95						179	93	170	281	22.8
	A10-3.12	3.3/4							191	105	170	281	22.9
	A10-M100		100						195	105	177	304	22.1
	A10-4.00	4	197						105	177	304	22.1
ABT-11	A11-3.12	3.3/4		384.5	3768	38.94	25120	280	192	106	172	299	52.7*
	A11-M100		100						196	106	179	306	31.4
	A11-4.00	4							198	106	179	299	31.4
	A11-4.04	4.1/4							209	111	186	312	36.4
	A11-M110		110						210	111	186	313	36.4
	A11-4.08	4.1/2							222	118	191	324	39.7
	A11-M120		120						226	118	198	330	41.4
	A11-4.12	4.3/4							229	121	202	342	42.3
	A11-M125		125						233	121	202	348	43.3
ABT-12	A12-M125		125	485.1	4754	49.13	31694	325	236	124	204	354	89.6*
	A12-5.00	5							243	129	204	359	60.3
	A12-M130		130						243	126	207	361	63.1
	A12-5.04	5.1/4							254	135	210	367	63.1
	A12-5.08	5.1/2							266	141	217	380	70.4
	A12-M140		140						260	135	217	380	70.6
	A12-5.3/4	5.3/4							276	145	218	389	70.8
	A12-M150		150						275	141	221	396	73.3
