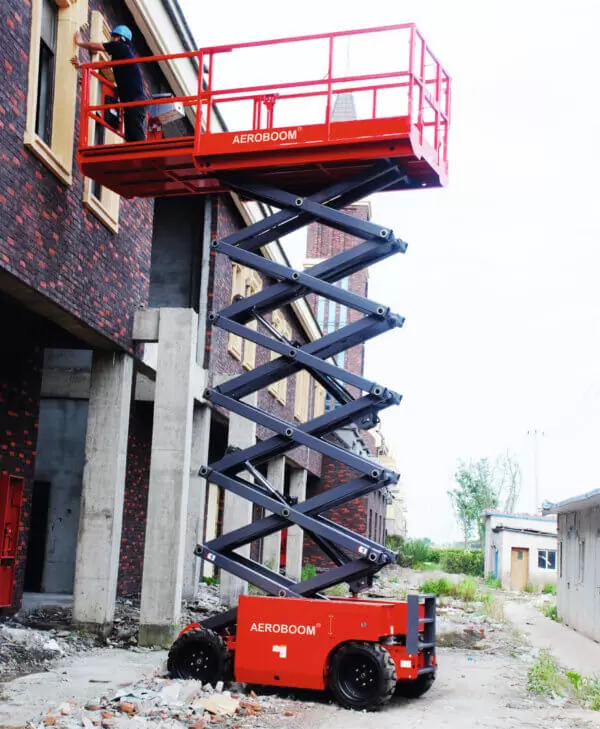

AXE-RT Series

Self-propelled Rough Terrain Scissor Lift

Standard Features

  • Foldable guardrail
  • Diagnosis system
  • AC power to platform
  • 4 wheel drive
  • Tilt level sensor with an audible alarm
  • Lowering alarm
  • Horn
  • Hour metre
  • Emergency pump
  • Proportional controls
  • Solid rough tire
  • Safety brackets
  • Explosion-proof of the tubing
  • Safety Brackets
  • Dual flashing beacon
Options Features
  • Automatic levelling hydraulic outriggers
  • Air line to platform
  • Lithium battery
  • Non-mark rough tire
  • Overload sensor

Description

Download

Model AXE100RT AXE120RT AXE140RT
Working height max(m) H1 10 12 14
Platform height max(m) H2 8 10 12
Platform height mini(m)(1) 1.22 1.34 1.46
Outreach(m)(2) 1.5 1.5 1.5
Lifting capacity(KG) 567 454 345
Lifting capacity(KG)(Extended platform) 136 136 136
Platform size
Lateral length(m)(3) 2.5 2.5 2.5
The length of platform extended(m)(4) 4 4 4
Lateral width(m)(5) 1.6 1.6 1.6
Fence height(m) (6) 1.15 1.15 1.15
Skirting board height(m)(7) 0.15 0.15 0.15
Stowed Size
Stowed length(m)(8) 2.67 2.67 2.67
Stowed width(m)(9) 1.75 1.75 1.75
Stowed height(m)(10) 2.38 2.5 2.6
Height of the machine with platform folded(m)(11) 1.68 1.8 1.98
Wheelbase(m)(12 1.85 1.85 1.85
Ground clearance(m)(13) 0.17 0.17 0.17
Turn diameter(m)(inside) 1.52 1.52 1.52
Turn diameter(m)(outside) 3.68 3.68 3.68
Load number max 3 3 3
Raised time(s) 30 43 50
Lowering time(s) 40 47 47
Traction speed(km/h) 4 4 4
Safe speed(km/h) 0.8 0.8 0.8
Vertical tilt 3 3 3
Lateral titt° 2 2 2
Control Proportional control
Drive Two wheel drive
WeightKG 3280 3830 4200
Power source 48V 240AH 48V 240AH 48V 240AH
Hydraulic tank capacity L 68 68 68
Gradeability 35% 35% 35%
Tire size/mm(in) 26*121-16.5 26*121-16.5 26*121-16.5
