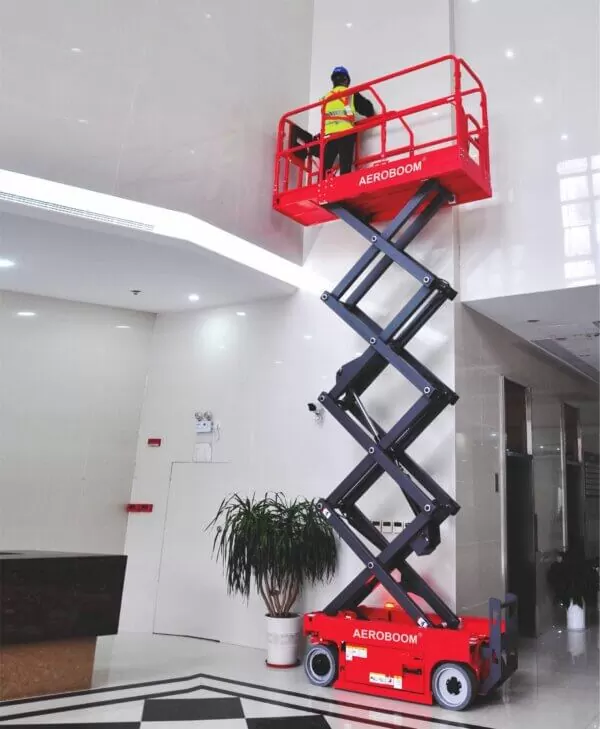

AXE-N Series

Electric Self-propelled Scissor Lift

Standard Features

  • Manual emergency lower system
  • Platform swing gate
  • Extended platform
  • Foldable platform
  • Multi-disc wet brake
  • Manual brake release
  • Pothole protection
  • Non-marking tires
  • AC power to platform
  • Tilt alarm
  • Buzzer
  • Safety brackets
  • Charging indicator
  • Forklift pockets
  • Diagnosis system
  • Maintenance free battery
  • Dual flashing beacon
Options Features
  • Airline to platform
  • Power socket to platform
  • Platform work light
  • Overload sensor
  • Horn
  • Anti-collision system
  • Top limit protection auto-stop device

Description

Download

AXE SERIES SCISSOR LIFT MANUA

Model AXE65N AXE80N
Working height max (m) H1 6.5 7.8
Platform height max (m) H2 4.5 5.8
Platform height min (m) (1) 0.93 1.03
Outreach (m) (2) 0.9 0.9
Lifting capacity (kg) 270 230
Lifting capacity (kg) (Extended platform) 115 115
Weight (kg) ANSI/CSA Standard 1164 1315
CE/AUS Standard 1235 1490
Platform size(3) x (5) (6)(L x W H)m 1.64×0.75x 1.1
The length of platform extended (m) (4) 2.54
Skirting board height (m) (7) 0.15
Stowed size(L W) (8) (9)m 1.85×0.77
Stowed height (m) (10) 2.04fixed platfrom 2.13fixed platirom
Length of the machine with platform extended (m) (13) 2.75
Height of the machine with platform folded (m) (11) 1.69 1.78
Hydraulic tank capacity (L) 15
Gradeability 30% 30%
Wheelbase (m) (12) 1.32
Ground clearance (m) 0.06
Pothole protection board ground clearance (m) (down) 0.02
Inside rotation radius (m) 0.8
Outside turning radius (m) 1.56
Load number max 2
Raised time/Lowering time (s) 11/8.5 14/11
Traction speed (km/h) 3.8
Safe speed (km/h) 0.7
Vertical tilt ANSI CSA 3 3
CE/AUS 3 3
Lateral tilt ANSI CSA 2 2
CE/AUS 2 2
Power source 4 6V; 225Ah
Tire size (mm) 356x114x254
Drive model Hydraulic drive/Electric drive
