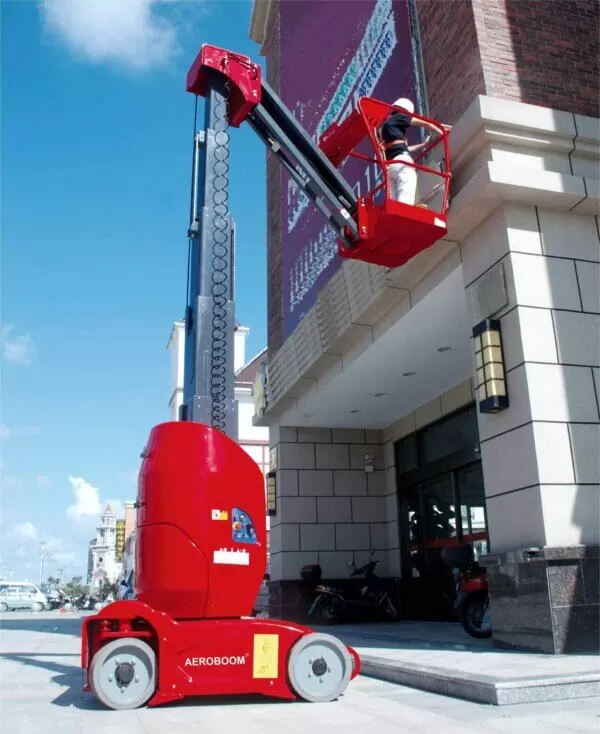

AIMP J SERIES scaled e1663070428460

AIMP-80J / 100J Series

Self-propelled Aerial Work Platform

Standard Features

  • The working height can reach up to 12m
  • The lift capacity can reach to 200kg
  • Standard platform with median sliding rod
  • Auxiliary platform lowering system
  • Ground emergency lowering valve
  • Proportional raising and Driving control
  • Diagnosis system
  • AC power to platform
  • Adjustable work tray
  • Lowering and tilting alarm
  • Turn inter-radius is 0
  • Double wheel brake
  • Hydraulic brake release
  • Pothole guards
  • The rear shield mounted with hinge, Conveniently to close to al major electrical and hydraulic components
  • Transportation fixing hole Wide type forklift handling notch Non-mark solid tire
Options Features
  • Door type standard/narrow/wide platform
  • Extendable platform
  • Fibre glass platform
  • Goods collection platform
  • Motion alarm
  • Tool box
  • Platform positioning laser lights
  • Fluorescent tubes box
  • Working flashing beacon
  • Top limit protection auto-stop device
  • Maintenance-free battery

Description

Download

Model AIMP 80J AIMP100J
Working height max. H1 8m 10m
Platform height max. H2 6m 8m
Outreach max. 3.15m 3.15m
Lifting capacity 200kg 200kg
Weight 2800kg 2870kg
Platform size, (L*W*H) 0.91*0.85*1.14m 0.91*0.85*1.14m
Stowed size,(L*W*H) 2.76*0.99*1.99 2.76*0.99*1.99
Gradeability 23% 23%
Wheelbase 1.2m 1.2m
Ground clearance 0.075m 0.075m
Pothole protection board ground clearance 0.025m 0.025m
Turning radius(outside) 1.82m 1.82m
Turning radius(inside) Om Om
Jib swing -60°/+60° -60°/+60°
Vertical tilt max. 2.5 2.5
Driving speed,stowed 4.5 (km/h) 4.5 (km/h)
Driving speed,raised 0.7 (km/h) 0.5 (km/h)
Power source 24V/240Ah 24V/240Ah
Tire size 406*125 (mm) 406*125 (mm)
