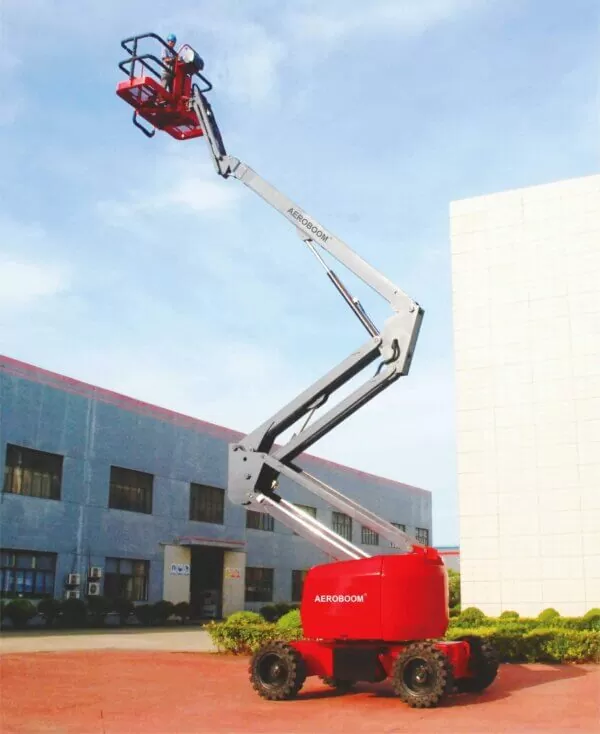

AHZ200J scaled e1663069737153

AHZ200J Series

Self-propelled Articulated Booms

Standard Features

  • Self-leveling platform
  • Hydraulic rotation platform
  • Hall effect fully proportional controls
  • Driving confirm
  • AC power to platform
  • Horn
  • Hour metre
  • Tilt alarm
  • Positive traction drive
  • Dual speed motor Emergency pump
  • CAN intelligent control
  • Overload limited
  • 360° non continuos turntable rotation
  • Non mark solid tire
Options Features
  • Platform swing gate
  • Platform alternate leverage
  • Welding pre-assembly
  • Welding line to work platform
  • Air line to the platform
  • Anti-crash air packages
  • Tool tray
  • Alarm packages
  • Platform work lights
  • Hydraulic oil in extremely cold areas
  • Pipeline components in extremely cold regions

Description

Download

Model AHZ 200J
Lift capacity max 230kg
Working height max 20.00m
Platform height max 18.00m
Platform outreach max 11.10m
Across height max 8.90m
Turntable rotation 360° discrete
Drive speed, stowed 4.0km/h
Drive speed, extended 1.0km/h
Platform rotation 180°
Boom swing 0/137°
Platform size A*B*H 2.4m x 0.9m x 1.1m
Leveling platform Hydraulic level
Drive wheels number 2
Steering wheel number 2
Drive DC 48V
System voltage DC12V
Tire size 355/55D-625
Controls Electrical proportional control
Turning radius-(outside) 5.40m
Turning radius-(inside) 2.20m
Turntable tailswing 0
Maximum lateral force 400N
Tilt angle max
Wind speed allowed max 12.5m/s
Gradeability 25%
Height-stowed C 2.50m
Length-stowed D 8.00m/8.80m
Width-stowed E 2.50m
Wheelbase F 2.5m
Ground clearance G 0.30m
Hydraulic tank capacity 170L
Total weight 12.3T
