Aeroboom > Products > Aerial Work Platforms > AHZ160/AHZ160J Self-propelled Articulated Booms

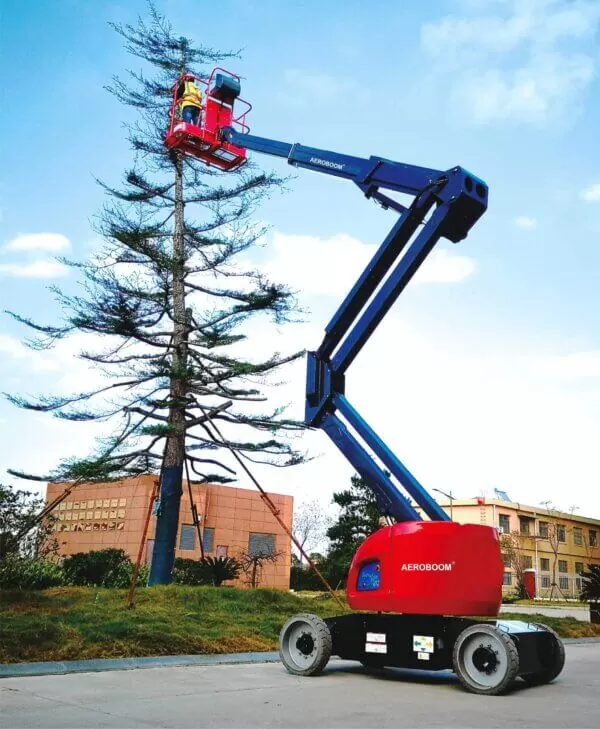

AHZ160 160J scaled e1663069685296

AHZ160/AHZ160J Series

Self-propelled Articulated Booms

Standard Features

  • Self-leveling platform
  • Hydraulic rotation platform
  • Hall effect fully proportional controls
  • Driving confirm
  • AC power to platform
  • Horn
  • Hour metre
  • Tilt alarm
  • Positive traction drive
  • Dual speed motor
  • Emergency pump
  • CAN intelligent control
  • Overload limited
  • 360° non continuos turnable rotation
  • Zero pendulum
  • Non mark solid tire
Options Features
  • Platform swing gate
  • Platform alternate leverage
  • Air line to the platform
  • Anti-crash air packages
  • Tool tray Alarm packages
  • Platform work lights
  • Hydraulic oil in extremely cold areas
  • Pipeline components in extremely cold regions

Description

Download

Model AHZ160/AHZ160J
Lift capacity max 230kg
Working height max 16.00m
Platform height max 14.00m
Platform outreach max 6.92m/6.95m
Across height max 7.38m
Turntable rotation 360 discrete
Drive speed, stowed 4.8km/h
Drive speed, extended 1.0km/h
Platform rotation 180°
Boom swing 0/140
Platform size A*B*H 1.5m x 0.76m x 1.1m
Leveling platform Hydraulic level
Drive wheels number 2
Steering wheel number 2
Drive DC 48V
System voltage DC12V
Tire size 600*190
Controls Electrical proportional control
Turning radius-(outside) 3.50m
Turning radius-(inside) 1.1m
Turntable tailswing 0
Maximum lateral force 400N
Tilt angle max 3°
Wind speed allowed max 12.5m/s
Gradeability 30%
Height-stowed C 2.00m
Length-stowed D 5.88m/6.31m
Width-stowed E 1.75m
Wheelbase F 2.00m
Ground clearance G 0.14m
Hydraulic tank capacity 35L
Total weight 6.49T/6.5T
