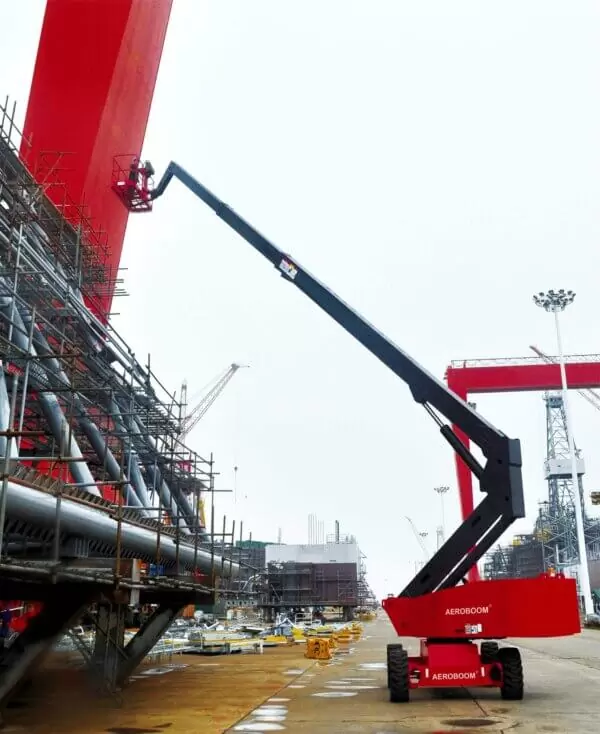

AHT270 / AHT285J Series

Self-propelled Telescopic Booms

Standard Features

  • Self-leveling platform
  • Hydraulic rotation platform
  • Lockable platform control box
  • Hall effect fully proportional controls
  • Driving confirm
  • AC power to platform
  • Horn
  • Hour metre
  • Tilt allarm Turntable
  • 360 degree continuous rotation
  • Positive traction drive
  • Dual speed motor
  • Emergency pump
  • CAN intelligent control
  • Overload limited Engine anti-restart protection
  • Automatic engine failure stall
  • Screw-out engine tray
Options Features
  • Platform swing gate
  • Platform alternate leverage
  • Welder connecting packages
  • Welder wire connecting to the platform
  • Air line to the platform
  • Hydraulic oil cooler
  • Hostile environment packages
  • Anti-crash air packages
  • Platform work lights
  • Front driving light
  • Traction packages
  • Cold start component
  • AC power source
  • Diesel exhaust gas purification muffler
  • A Diesel anti-spark muffler
  • Air prefilter

Description

Download

Model AHT 270 AHT 285J
Working height max 27m 28.5m
Platform height max 25m 26.5m
Lift capacity max 230kg 230kg
Total weight (2wd) 13.86T
Total weight (4wd) 14.5T 15.5T
Length-stowed 11.2m 11.8m
Height-stowed 2.8m
Width-stowed 2.5m
Wheelbase 3.0m
Drive speed, stowed 5.1km/h
Drive speed, extended 1.1km/h
Gradeability (2wd/4wd) 30%/45%
Tire 365/14D-20;rubber solid tire
Power producer Cummins engine QSF2.8T54kw
Control mode Electro hydraulic proportional control
Turnable rotation 360°
Platform rotation 180°
Jib ratation 130° (+75°/55°)
Platform size 1.8m x 0.76m x 1.1m 2.4mx0.9mxx.1m
Driving wheels number 2/4
Steering wheels number 2
System voltage DC12V
