AGA Series

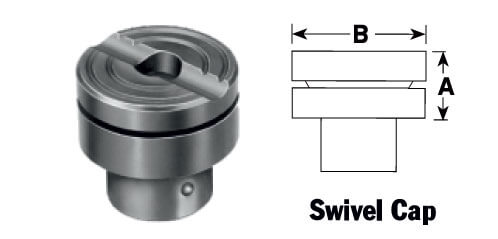

Mounting accessories

Description

Download

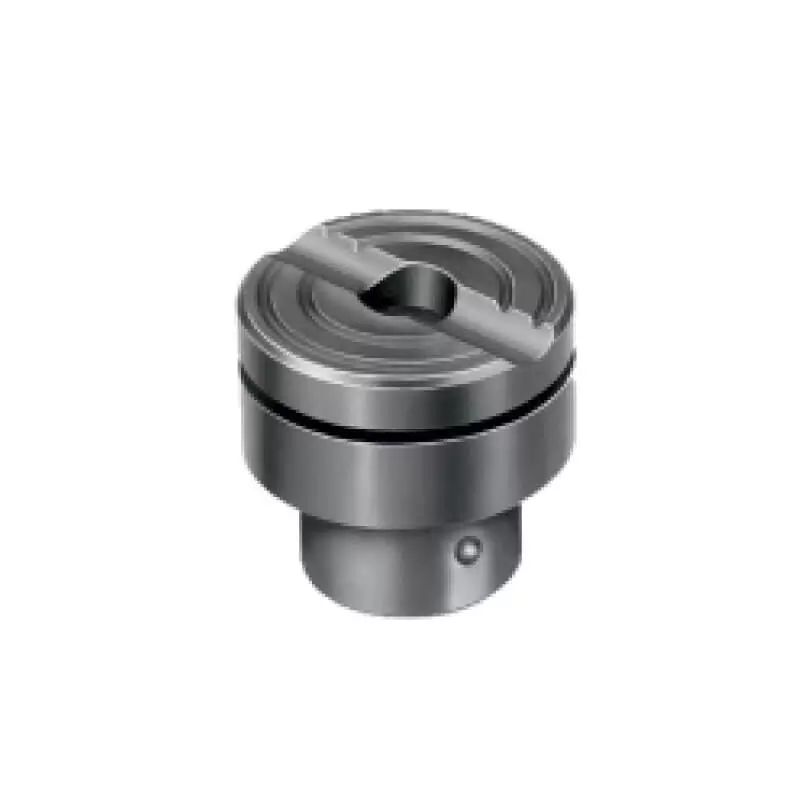

Cylinder Tons Part No. Dimensions A (mm) B
10 or 15 350144 22.4 30.1
25 350145 28.7 50.8
55 or 75 350376 31.8 71.4
100 351574 48.5 88.1

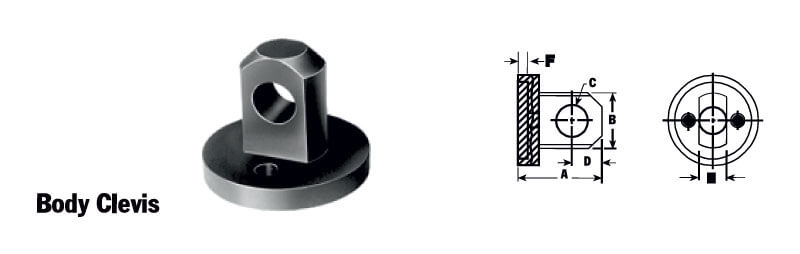

Dimensions (mm)
Cylinder tons Part No. A B C D E F
5 350095 44.5 28.7 16 36.6 16 1/4- 16
10 or 15 350094 65 42.9 22.4 58.7 25.4 1-8
25 420059 74.7 57.2 31.8 68.3 31.8 1% 16

Dimensions (mm)
Cylinder tons Part No. A B C D E F
5 350096 52.3 28.7 16 16 14.2 6.4
10 350097 76.2 42.9 22.4 25.4 25.4 6.4
15 350098 77.7 42.9 22.4 25.4 25.4 6.4
25 420061 90.4 57.2 31.8 31.8 38.1 6.4

Dimensions (mm)
Cylinder tons Part No. A B C D E
5 350099 76.2 25.4 54.1 1¹/2-16 UN-2B 8.6
10 350100 88.9 25.4 66.8 2¹/4 – 14 UNS-2B 8.6
15 350184 88.9 25.4 66.8 2/4 – 16 UN-2B 8.6
25 420064 127 50.8 93 315/20 – 12 UN-2B 16.8

Cylinder tons Part No. A B Dimensions (mm) C D
5 25750 * 114.3 63.5 /4 – 14 NPSM 34
10 32325 166.6 88.9 1¹/4 – -11¹/2 NPSM 36.6

Model Male Coupler Thread Female Coupler Thread Gauge Port Thread Dimensions
IN/D IN/E IN/C mm mm mm
AGA-002 3/8″NPT 3/8″NPT 1/2″NPT 155 35 32
AGA-003 3/8″NPT 3/8″NPT 1/4″NPT 133 48 32
AGA-005 3/8″NPT 3/8″NPT 1/4″NPT 134 35 32
AGA-011 3/8″NPT 1/4″NPT 1/4″NPT 133 48 32
