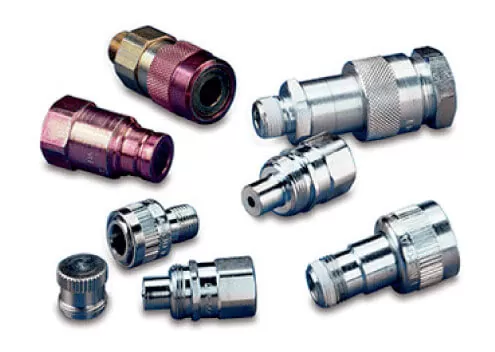

A C F T Series Couplers 1

A, C, F, T – Series -Couplers

Thread: 1 / 4 ”and 3 / 8 ” NPTF
Maximum Flow Cap: 6.1 – 40.0 I/min
Maximum Operating Pressure: 10,000 psi

  • 3/8’NPT high flow couplers,.
  • It is standard component on most Aeroboom cylinders.
  • Featuring ‘push-to-connect’ operation.
  • 1/4″ regular coupler.

Description

Download

A, C, F, T-Series, Hydraulic Couplers

Quick Connections of Hydraulic Lines 3 / 8 ” HIGH FLOW COUPLERS
  • Standard equipment on most Aeroboom cylinders.
  • Recommended for use on all Aeroboom pumps and cylinders where space and porting permits.
  • Includes “2-in-1” dust cap for use on male and female coupler halves.
3 / 8 ” HIGH PRESSURE ‘FLUSH-FACE’ COUPLERS
  • Featuring “Push-to-connect” operation, to guarantee good connection every time.
  • Flush-face, zero-leak operation for minimal spillage.
  • HTMA* recognized for safety and performance.
  • Will not interchange with low pressure couplers.
3 / 8 ” REGULAR SPEE-D-COUPLER
  • For medium duty applications with hand pumps.
  • Includes female aluminum dust cap.
1 / 4 ” REGULAR COUPLER
  • For use with small cylinders and hand pumps.
  • Includes female aluminum dust cap.
1 / 4 ” SPIN-ON TORQUE WRENCH COUPLERS
  • Use with 700 bar S and W-series torque wrenches, THQ- series hoses and torque wrench pumps with suffix “Q”.
/ 4 ” LOCK-RING TORQUE WRENCH COUPLERS (DUSTCAPS INCLUDED)
  • Use with 11000 psi SQD and HXD-series torque wrenches.
  • THC-series hoses and torque wrench pumps.
* Hydraulic Tool Manufacturers Association.

Model Screw Model Type
AB-204TA 15 Female
AB-204TB 20 Male
AB-204T 40 Male & Female

Model Number’s
Maximum Fow Capacity(1/min) Coupler Type Complate Set Female Half Male Half
35 700 bar High-Flow Coupler C-604 ACR-400 CH-604
40 700 bar Flush-Face coupler F-604 AFR-400 FH-604
7.6 700 bar Regular Spee-D-Coupler = A-604 AR-400 AH-604
7,6 700 bar Regular Coupler A-630 AR-630 AH-630
11.4 700 bar Spin-on Coupler T-630 ATR-630 TH-630
6,1 800 bar Lock-ring Coupler CFF-250 CMF-250

Model Photograph Max operating Pressure Male half Female half
C901 700 bar C9014 C9013
C902 700 bar C9022 C9021
C116 1500 bar C1162 C1161
C125 2000 bar C1252 C1251
